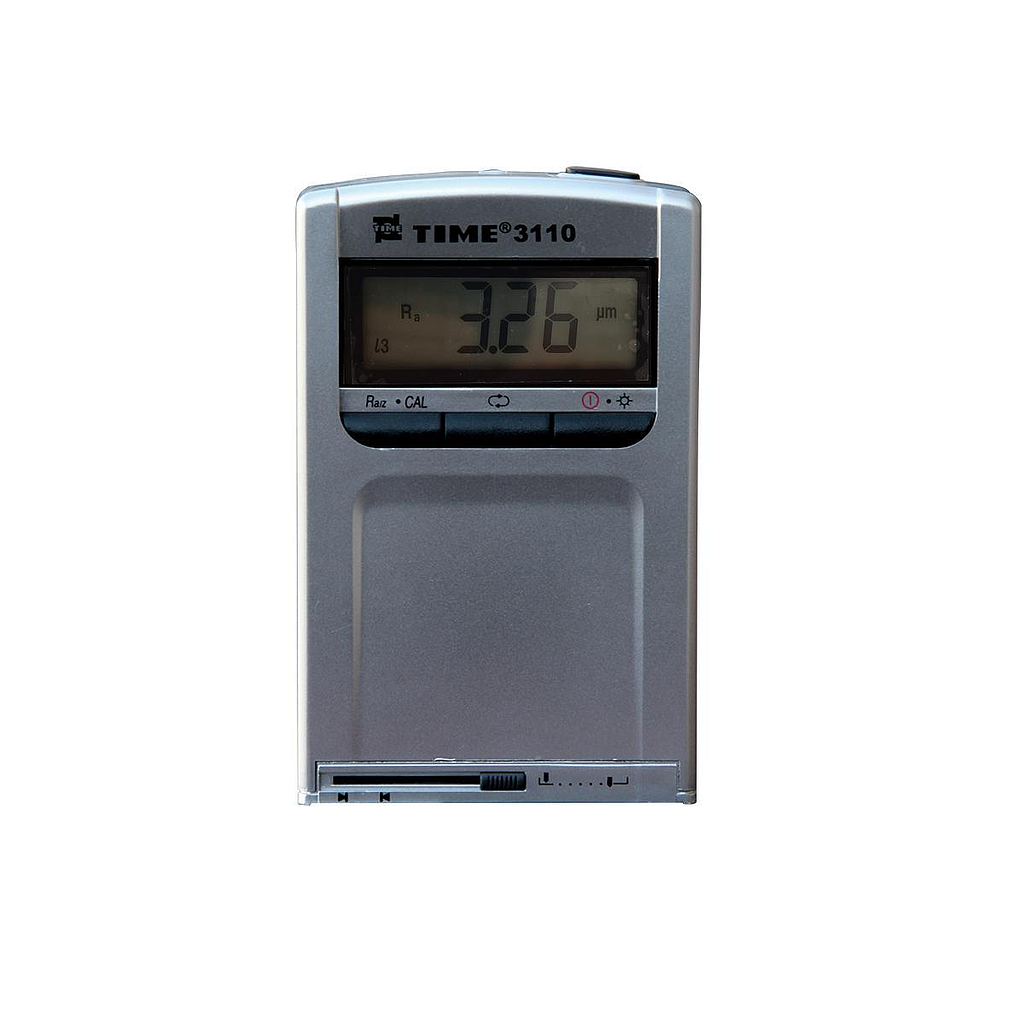

TIME TIME ® 3110 Handheld Surface Roughness Tester (Ra: 0.05-6.5μm Rz: 0.1-50μm)

Roughness parameter : Ra, Rz

Tracing length: 6mm

Tracing speed : 1.0mm/sec

Cut-off lengths: 0.25mm/0.8mm/2.5mm

Evaluation length: 1.25mm/4.0mm/5.0mm

Measuring range: Ra: 0.05-6.5μm Rz: 0.1-50μm

Accuracy: ±15%

Repeatability: <12%

Filter: RC analogue

Pick-up: Piezoelectric

Radius and angle of the stylus point: Diamond, Radius : 10±2.5μm Angle: 90°(+5°or -10°)

Operating temperature: 0~40℃

Humidity: <80%

Storing temperature: -25℃ ~ 60℃

Power: 3.6V Li-ion battery

Charger: DC6V, 3 hours (charging time)

Dimension (mm): 110×70×24

Weight (g): 160
