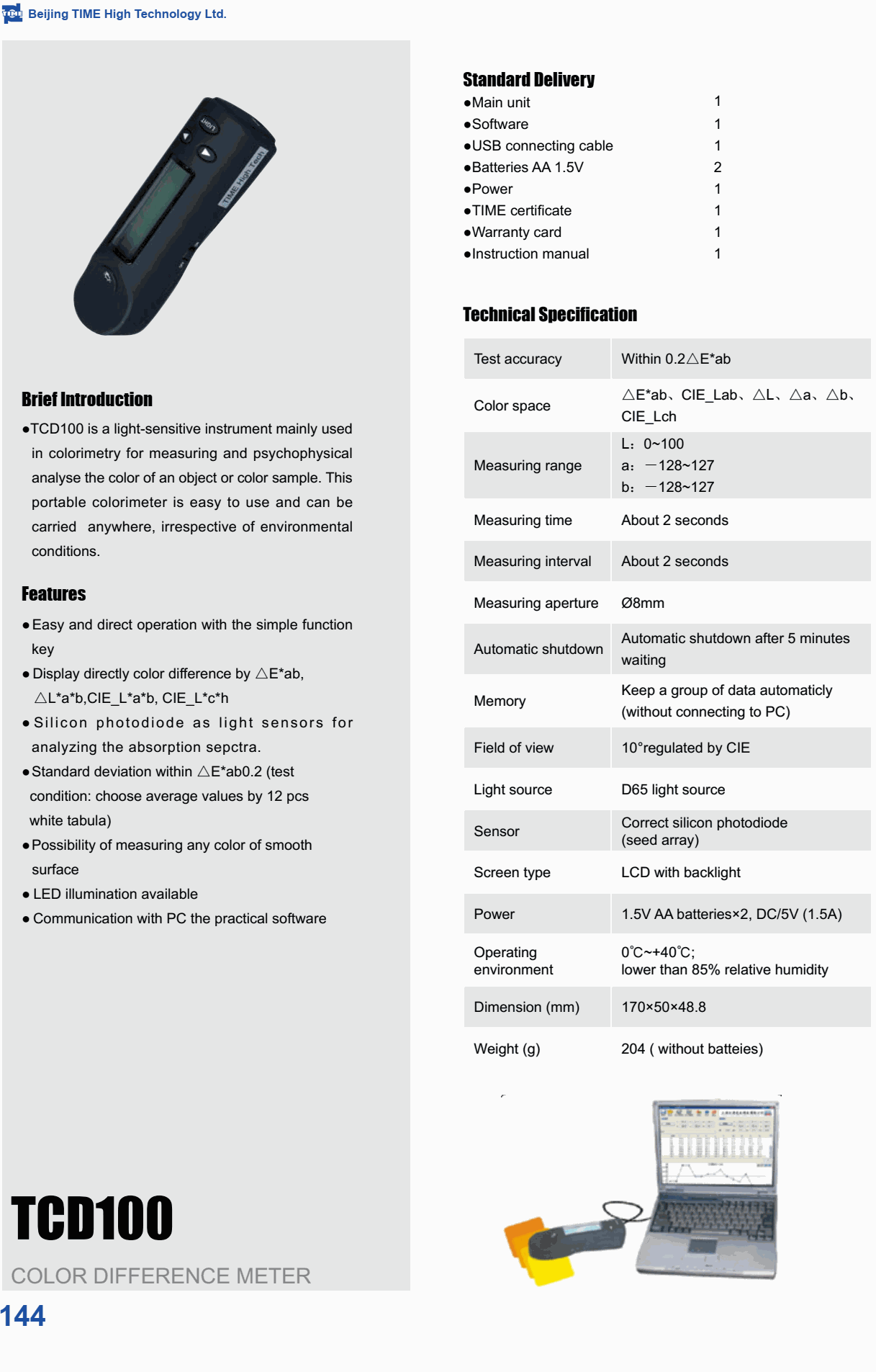

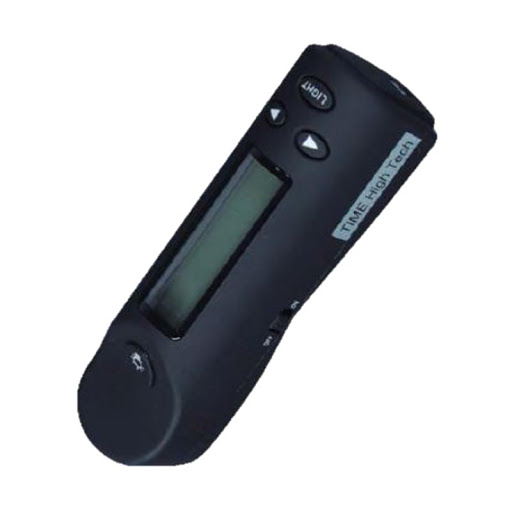

TIME TCD100 Color Difference Meter

Technical Specification

Test accuracy: Within 0.2△E*ab

Color space: △E*ab, CIE_Lab, △L, △a, △b, CIE_Lch

Measuring range:

L： 0~100

a：－128~127

b：－128~127

Measuring time: About 2 seconds

Measuring interval: About 2 seconds

Measuring aperture: Ø8mm

Automatic shutdown: Automatic shutdown after 5 minutes waiting

Memory: Keep a group of data automatically (without connecting to PC)

Field of view: 10°regulated by CIE

Light source: D65 light source

Sensor: Correct silicon photodiode (seed array)

Screen type: LCD with backlight

Power: 1.5V AA batteries × 2, DC/5V (1.5A)

Operating environment: 0℃~+40℃; lower than 85% relative humidity

Dimension (mm): 170×50×48.8

Weight (g): 204 ( without batteries)

Standard Delivery

●Main unit

●Software

●USB connecting cable

●2 x Batteries AA 1.5V

●Power

●TIME certificate

●Warranty card

●Instruction manual
