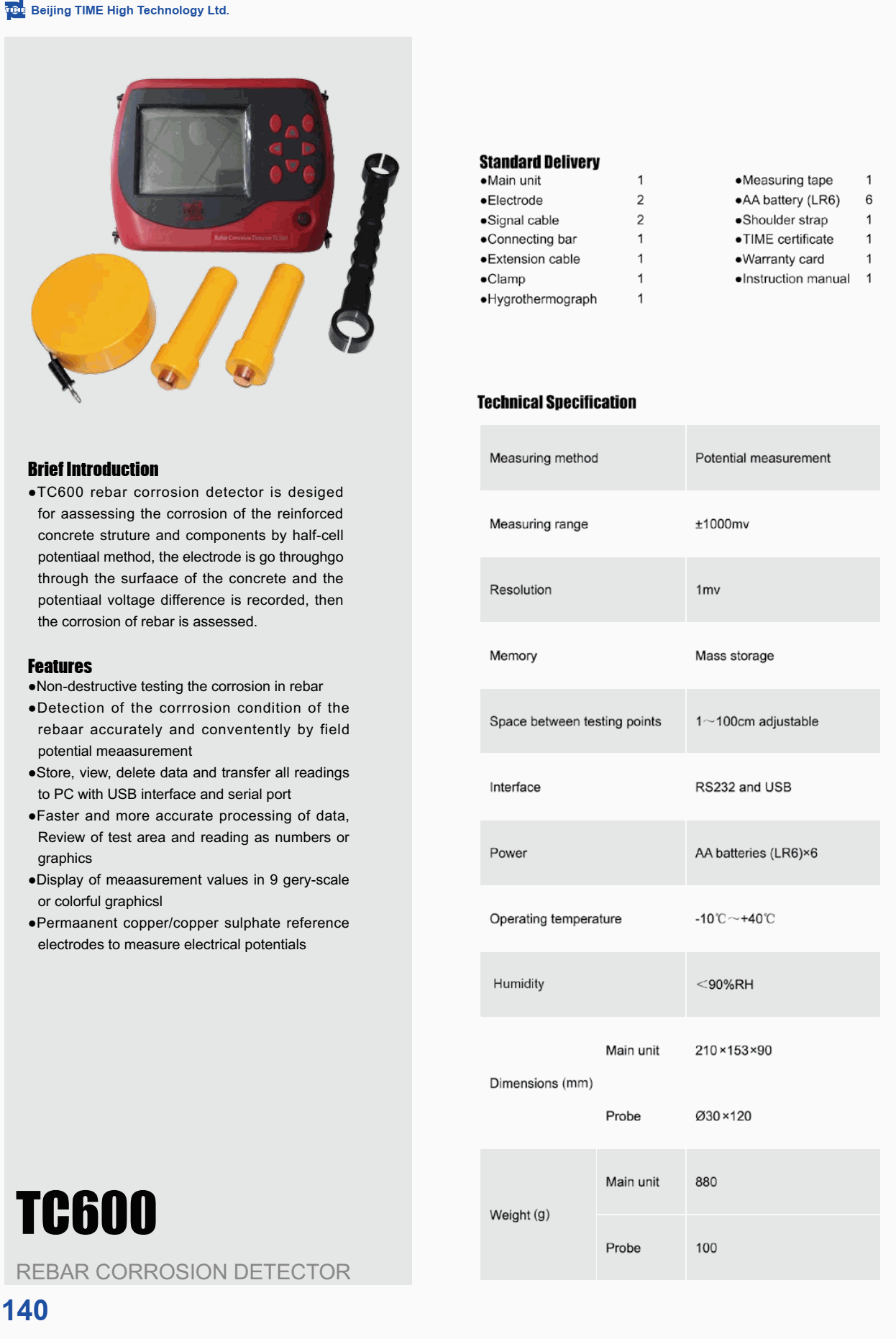

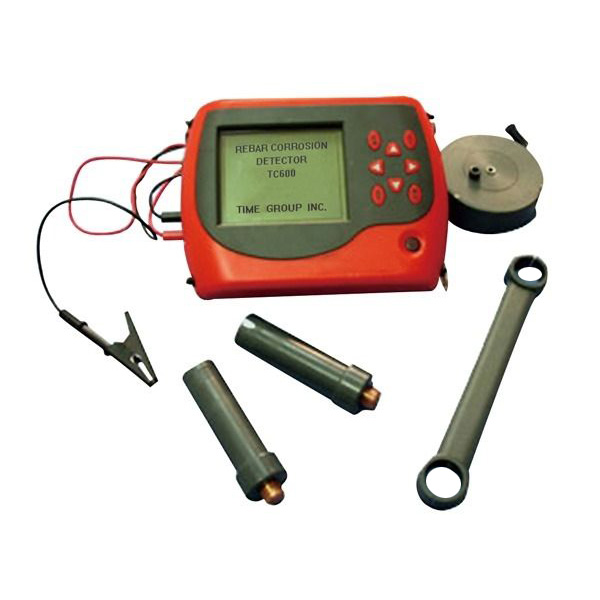

TIME TC600 Rebar Corrosion Detector (±1000mv; 1mv)

Technical Specification

Measuring method: Potential measurement

Measuring range: ±1000mv

Resolution: 1mv

Memory: Mass storage

Space between testing points: 1～100cm adjustable

Interface: RS232 and USB

Power supply: AA batteries (LR6)×6

Operating temperature: -10℃～+40℃

Relative humidity: ＜90%RH

Dimensions:

Main unit: 210mm×153mm×90mm

Probe: Φ30mm×120mm

Weight:

Main unit: 880g

Probe: 100g

Standard Delivery

Main unit

2 x Electrode

2 x Signal cable

USB connecting cable

RS232 connecting cable

Connecting bar

Extension cable

Clamp

Hygrothermograph

Measuring tape

6 x AA battery (LR6)

Shoulder strap

Instruction manual

TIME certificate

Warranty card
