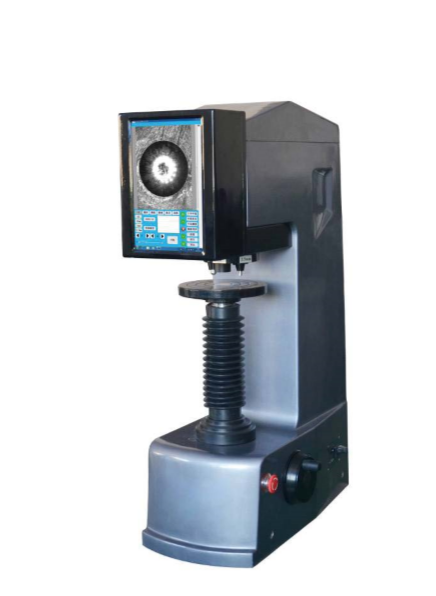

TIME 6206 Fully Automatic Three Indenters Digital Brinell Hardness Tester (3,18 ~ 653HBW)

Test Force:

612.9n(62.5kgf), 980.7n(100kgf), 1226n(125kgf), 1839n(187.5kgf), 2452n(250kgf), 4903n(500kgf), 7355n(750kgf), 9807n(1000kgf), 14710n(1500kgf), 29420n(3000kgf)

Test Range: 3.18~653HBW

Loading Method: Automatic (Loading/Dwell/Unloading)

Hardness Reading: Indentation Displaying and Automatic Measuring on Touch Screen

Computer: CPU: Intel I5，Memory: 2G，SSD: 64G

CCD Pixel: 3.00 Million

Conversion Scale:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HBS, HBW

Data Output: USB Port, VGA Interface, network Interface

Shifting between Objective and Indenter: Automatic Recognition and Shifting (Three Indenters, Two Objectives)

Objective 1×, 2×

Resolution: 3μm, 1.5μm

Dwell Time: 0~95s

Max. Height of Specimen: 290mm

Throat: 150mm

Power Supply: AC220V, 50Hz

Execute Standard: ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2

Dimension:

700×380×1000mm

Packing Dimension: 920×510×1280mm

Weight

net Weight: 200kg

Gross Weight: 230kg

Standard Delivery

Main unit

Ф2.5mm, Ф5mm, Ф10mm Ball Indenter

Large Plane Test Table

Fuse 2A

Hardness Block 150~250 HBW 10/3000

Inner Hexagon Spanner 3mm

Usage Instruction Manual

1×, 2× Objective

Small Plane Test Table

V-shaped Test Table

Power Cable

Hardness Block 150~250 HBW 5/750

Anti-dust Cover
