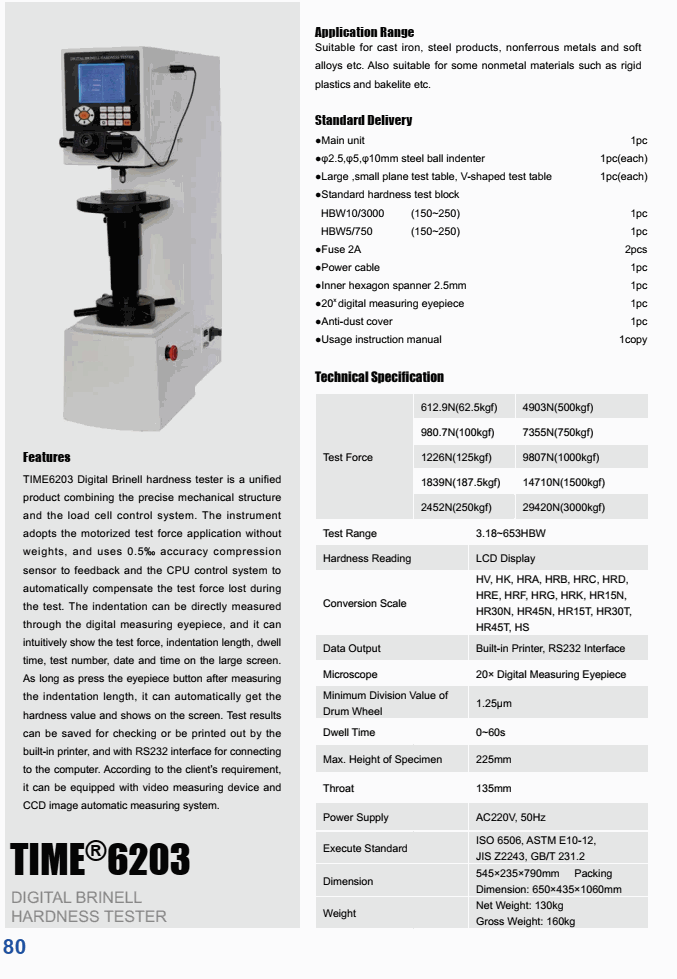

Test Force:
612.9n(62.5kgf); 4903n(500kgf)
980.7n(100kgf); 7355n(750kgf)
1226n(125kgf); 9807n(1000kgf)
1839n(187.5kgf) 14710n(1500kgf)
2452n(250kgf); 29420n(3000kgf)
Test Range: 3.18~653HBW
Hardness Reading: LCD Display
Conversion Scale:
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS
Data Output: Built-in Printer, RS232 Interface
Microscope: 20× Digital Measuring Eyepiece
Minimum Division Value of Drum Wheel: 1.25μm
Dwell Time: 0~60s
Max. Height of Specimen: 225mm
Throat: 135mm
Power Supply: AC220V, 50Hz
Execute Standard:
ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2
Dimension: 545×235×790mm
Packing Dimension: 650×435×1060mm
Weight
net Weight: 130kg
Gross Weight: 160kg
Standard Delivery

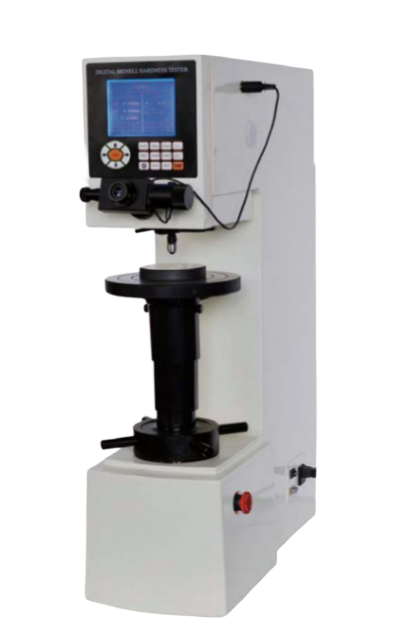

Main unit
Ф2.5mm, Ф5mm, Ф10mm steel ball Indenter
Small Plane Test Table
Standard hardness test block 150~250 HBW 10/3000
2 x Fuse 2A
Inner Hexagon Spanner 2.5mm
20× Digital Measuring Eyepiece
Large Plane Test Table
V-shaped Test Table
Standard hardness test block 150~250 HBW 5/750
Power Cable
Anti-dust Cover
Usage instruction manual
