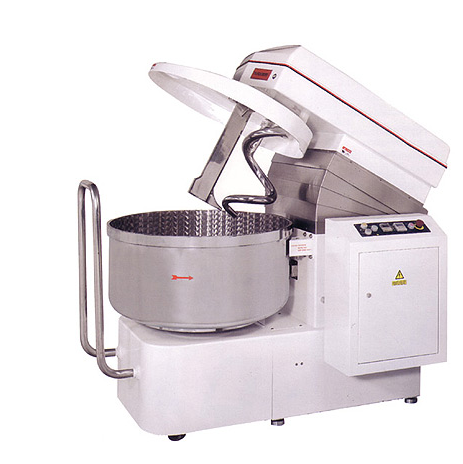

Thunderbird ASP-200 (440 lb capacity) Spiral Mixer (336 qts)

Features:

Two speed motor with timer and separate bowl drive motor.

Bowl jog control makes for easy unloading.

Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Specifications

Capacity:

Flour capacity (kg)/(lbs)128/282

Dough capacity (kg)/(lbs)200/440

Bowl capacity (qts)336

Dia. of bowl (mm)900mm/36in

Height of bowl (mm)450mm/17.80in

Motor:

Horsepower15Hp / 1.5HP

1st speed (kw)5.8

2nd speed (kw)9.8

Bowl(kw)0.78

Dimensions:

Width (mm)1120mm/37in

Length (mm)1760mm/66in

Height(mm)1410mm/58.5in

Machine Weight (kg/lb):850/1870

Datasheet
