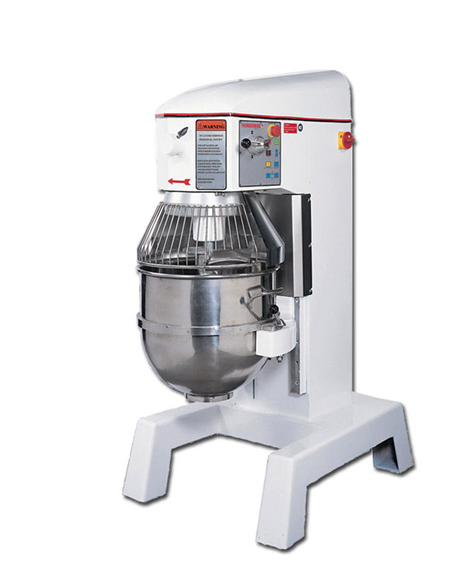

Thunderbird ARM-60 (60pt) Planetary Mixer (4 HP; 50 amps)

Features

•60-quart capacity

•1-99minute timer for continuous or timed operation

•Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.

•Motor cooling system.

•Moisture resistant switches

•Motor thermal protector.

•Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning

Specifications

Motor:

6-speed (3 speed gear box with 2 speed motor)

4Hp continuous

50 amps

Electrical:

220/60/3 or 220/60/1

440v/60/3 or 440v/50/3

Speed Range:

Beater: 18-100

Hub: 38-228

Weight:

Net: 1018lbs (462kg)

Ship: 1180lbs (536kg)

Dimensions:

Width: 32'' (813mm)

Depth: 43.8'' (1113mm)

Height: 61.8'' (1569mm)

Shipping:

Width: 33.8'' (858mm)

Depth: 47'' (1193mm)

Height: 71.8'' (1828mm)

Datasheet
