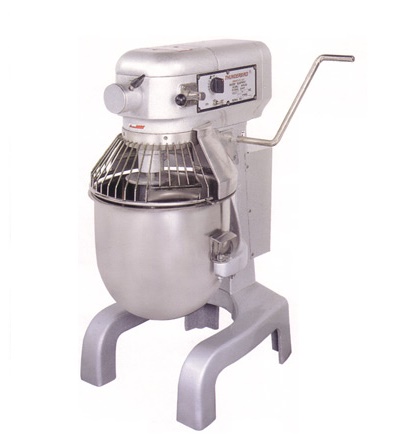

Thunderbird ARM-02 (20pt) Planetary Mixer (3 / 4HP; 14 amps)

Features

•20-quart capacity

•1-15minute timer for continuous or timed operation

•Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.

•Motor cooling system.

•Moisture resistant switches

•Motor thermal protector.

•Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning

Specifications

Motor:

3-speed

3/4HP continuous

14 amps

Electrical:

115/60/1

220v/60/1 and 220v/50/1 available

Speed Range:

Beater: 46-155

Hub: 106-357

Weight:

Net: 225lbs (102kg)

Ship: 249lbs (113kg)

Dimensions:

Width: 15'' (380mm)

Depth: 22'' (560mm)

Height: 32'' (815mm)

Shipping:

Width: 22'' (560mm)

Depth: 22'' (560mm)

Height: 38'' (965mm)
