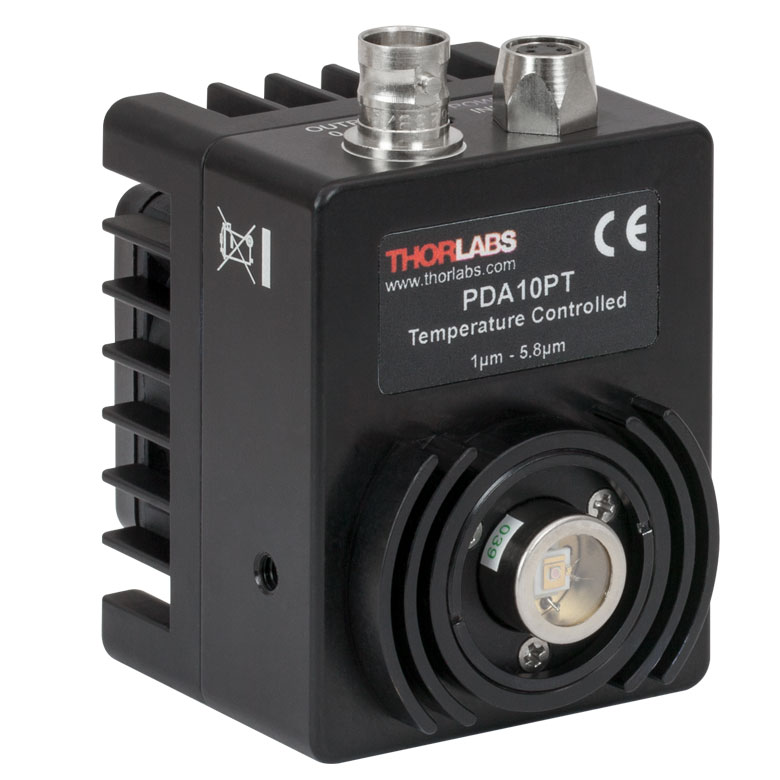

THORLABS PDA10PT Free-Space InAsSb Amplified Detector with TEC (Ø1 mm, 100 - 240 VAC)
ManufacturerTHORLABS(View more products from this manufacturer)
ModelPDA10PT
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Wavelength Range: 1.0 - 5.8 µm
Peak Wavelength (λP): 4.9 µm
Peak Responsivity: 0.8 A/W (Min) at λP. 1.6 A/W (Typ.) at λP
Active Area: Ø1 mm
Window Material: Sapphire
Gain Settings: 8 Steps: 0, 4, 10, 16, 22, 28, 34, or 40 dB
Bandwidth Settings: 8 Steps from 12.5 kHz to 1600 kHz
Noise-Equivalent Power (NEP):1.49 x 10^-10 W/Hz^1/2 (for 40 dB Gain and 1600 kHz Bandwidth)
More detailed specifications are available in the manual.
