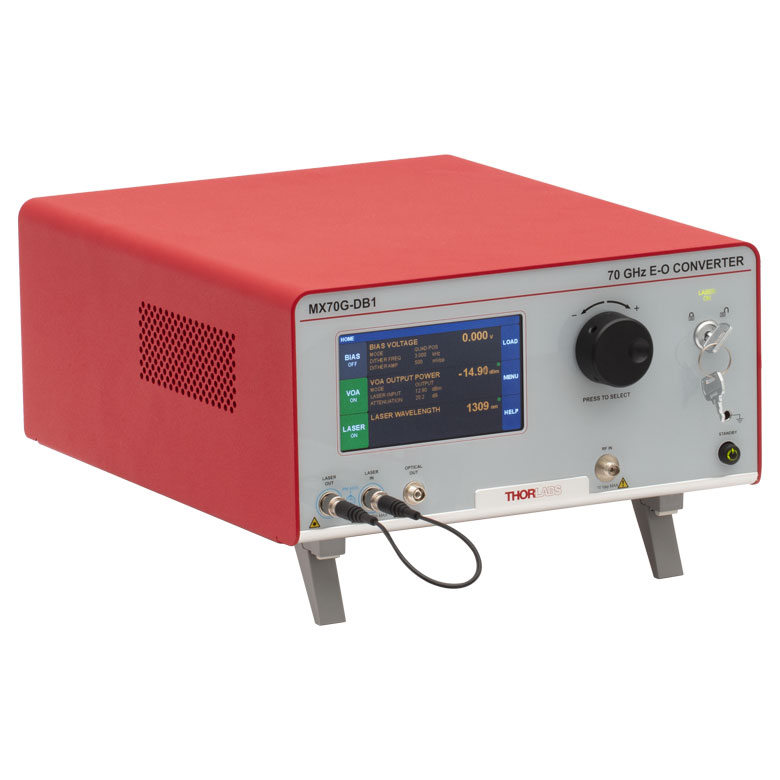

THORLABS MX70G-DB1 Calibrated Electrical-to-Optical Converters (70 GHz)

Key System Specifications(a):

Frequency Response(b)(Click for Plot): DC - 70 GHz

Internal Laser Type: C-Band, Tunable Internal. Laser Wavelength: 1527,6 - 1565,5 nm

Internal Laser Type: Fixed Wavelength. Laser Wavelength: 1310nm

External Laser Support: 1250 nm - 1610 nm, 20 dBm Max

Input RF Connector Type: 1.85 mm Connector(c)

(a) For complete specifications, see the manual.

(b) Measured frequency response provided in *.s2p file on a USB drive with each unit.

(c) The 2.92 mm connector can mate directly to an SMA, 3.5 mm, or K connector.
