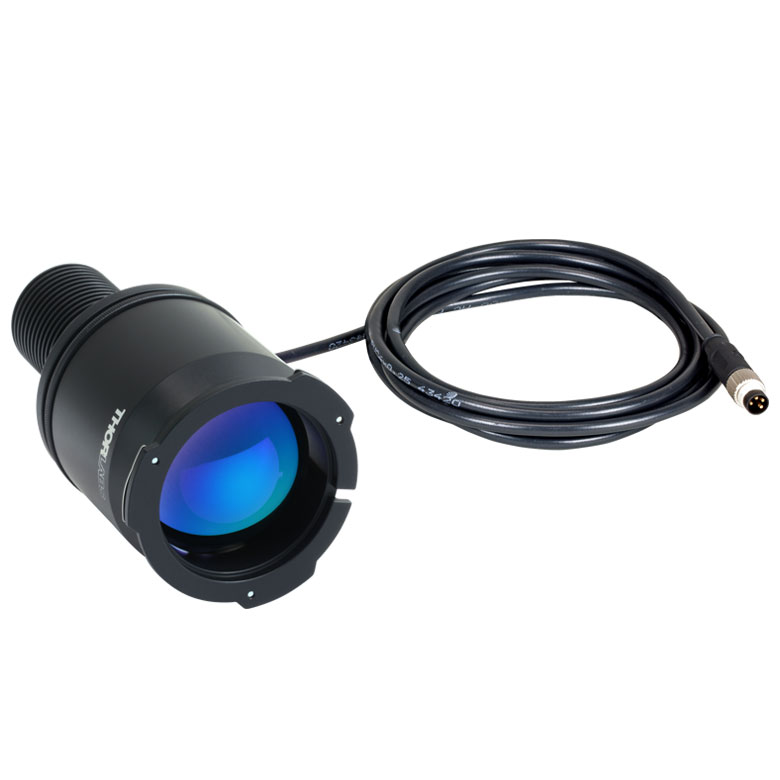

THORLABS M660L4-C5 Collimated LED (Deep Red; 660 nm; 520 mW; 43 mm; Nikon Eclipse)

Color: Deep Red

Nominal Wavelength(a): 660 nm

Bandwidth (FWHM): 20 nm

Maximum Current (CW): 1200 mA

Forward Voltage: 2.6 V

Electrical Power (Max): 3120 mW

Emitter Size: 1.5 mm x 1.5 mm

Typical Lifetime: >10 000 h

Operating Temperature (Non-Condensing): 0 to 40 °C

Storage Temperature: -40 to 70 °C

Risk Group(b): RG1 – Low Risk Group

***a. Value is approximate.

b. According to the standard IEC 62471:2006, Photobiological Safety of Lamps and Lamp Systems

Total Beam Power(a,b): 520 mW

Beam Diameter(a): 43 mm

Compatible Microscopes: Nikon Eclipse

***a. Values are approximate.

b. Measured at Maximum Current.
