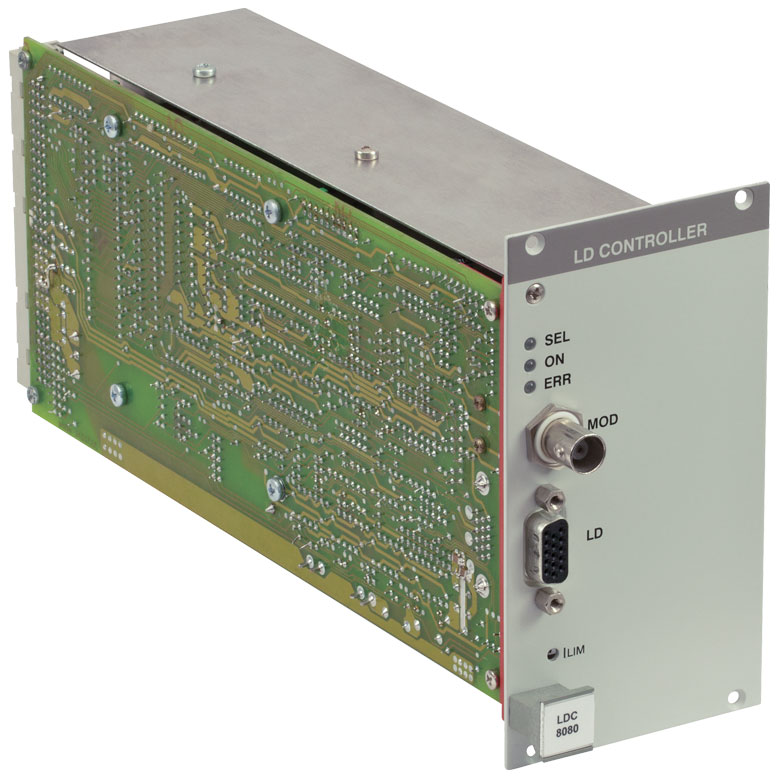

THORLABS LDC8080 PRO8 Laser Diode Current Control Modules (±8 A, 2 Slots Wide)

Current Control

Control Range (Continuous): 0 to ±8 A(c)

Compliance Voltage: >5 V

Setting Resolution: 130 µA

Setting Accuracy (Full Scale): ±0.3%

Noise Without Ripple (10 Hz To 10 MHz, RMS, Typical): <100 µA

Ripple (50/60 Hz, RMS, Typical): <8 µA

Transients (Processor, Typical): <200 µA

Transients (Other, Typical): <8 mA

Drift 60 Min / 24 Hour (Typical, 0 - 10 Hz, at Constant Ambient Temp.): <100 µA / <200 µA

Temperature Coefficient: <50 ppm/°C

Power Control

Control Range of Photo Current: 10 µA to 5 mA (Other Ranges Available upon Request)

Reverse Bias Voltage: 0 / 5 V (Switchable)

Resolution: 100 nA

Accuracy (Full Scale): ± 0.05%

Current Limit

Setting Range (20-Turn Trim-Pot): 0 to ≥8 A

Resolution: 250 µA

Accuracy: ±50 mA

Power Limit

Photo Current Range: 0 to 5 mA

Resolution: 1.25 µA

Accuracy: ±50 µA

Laser Voltage Measurement

Measurement Principle: 4-Wire (Improves Accuracy by Compensating for Cable Resistance)

Measurement Range: 0 to 5 V

Resolution: 0.2 mV

Accuracy: ±5 mV

Analog Modulation Input

Input Resistance: 10 kΩ

3dB-Bandwidth, CC(a): DC to 10 kHz

Modulation Coefficient, CC: 800 mA/V ± 5%

Modulation Coefficient, CP: 0.5 mA/V ± 5%

Rise & Fall Time, (Typical)(b): <15 µs

Connector Type: BNC

General Data

Module Width: 2 Slots

Laser Diode Connector: 15-pin HDD-Sub (f )

Weight: <750 g

Operating Temperature: 0 to 40 °C

Storage Temperature: -40 to +70 °C

(a) Small Signal Bandwidth

(b) External TTL Modulation Synchronous for all Current Cards

(c) 10 A Available Upon Request
