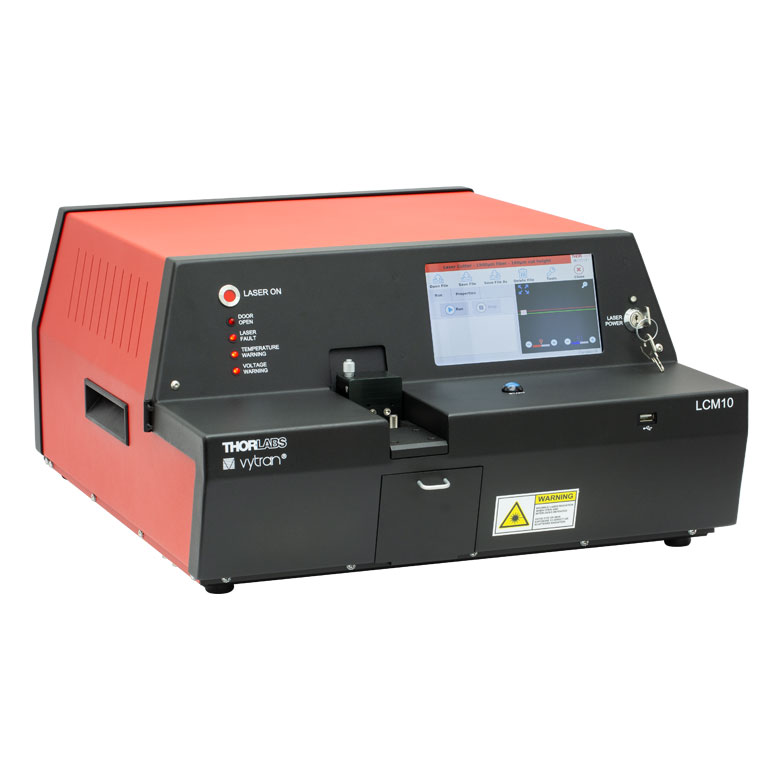

THORLABS LCM10 CO2 Laser Fiber Cutter (10,6 µm)

Laser Wavelength: 10.6 µm

Laser Output Power: 40 W (Max)

Power Stability: ±5%

Duty Cycle: 0 - 99%

Maximum Fiber Size: Ø1.5 mm

Supported Connector Types (One Mount for Each Included): FC/PC and SC. MT. SMA. LC

Included Cannula Stops:

- Ø1.25 mm Cannula Stop (For LC Connector Mount)

- Ø2.5 mm Cannula Stop (For FC/PC & SC Connector Mount)

Cut Time, Fiber Diameter ≤ 600 µm: <4 seconds

Cut Time, Fiber Diameter > 600 µm: <8 seconds

Fiber Protrusion Distance (Before Cutting): 1 - 50 mm

Minimum Cut Height, 1.25 mm Ferrule(a): 60 - 90 µm

Minimum Cut Height, 2.5 mm Ferrule(a): 80 - 120 µm

Minimum Cut Height, 3.2 mm Ferrule(a): 120 - 160 µm

Cut Height Repeatability:±10 µm

Power Input: 90 - 264 VAC, 47 - 63 Hz. 8.2 A @ 115 VAC, 3.9 A @ 230 VAC

Operating Temperature: 15 to 40 °C

Storage Temperature: -20 to 60 °C

Operating Humidity: 0 to 75% Relative Humidity (Non-Condensing)

Storage Humidity: 0 to 90% Relative Humidity (Non-Condensing)

Altitude Range: 0 to 2000 m Above Sea Level

Dimensions (L x W x H)23.11" x 18.25" x 9.95" (586.9 mm x 463.6 mm x 252.7 mm)

Weight: 46.8 lbs (21 kg)

Packaged Weight: 64.8 lbs (29 kg)

(a) There is a range of minimum cut heights since the beam is conical, and the angle of the cone and the diameter of the ferrule determine how close the fiber can be cut
