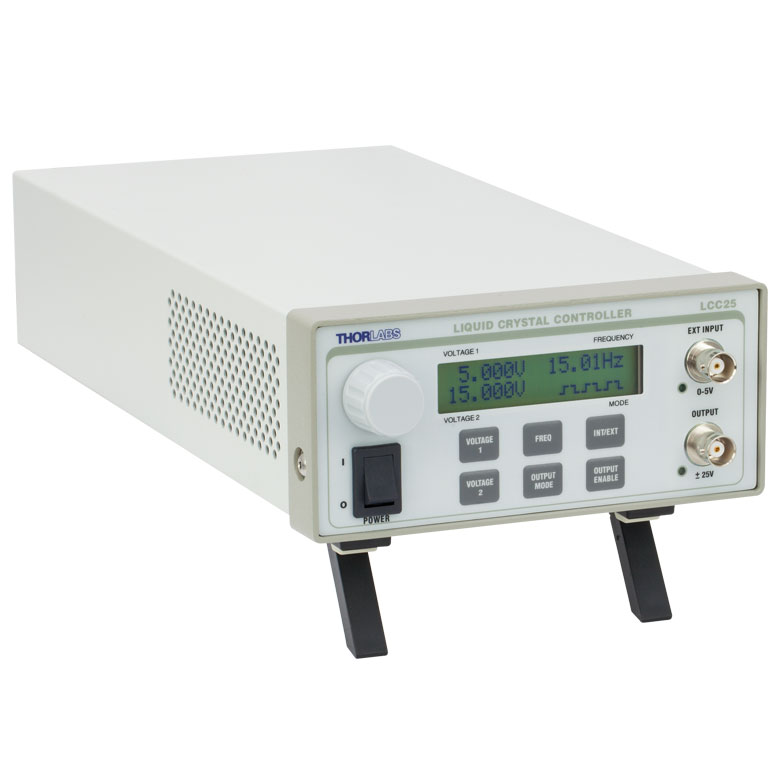

THORLABS LCC25 Benchtop Voltage Controller for Liquid Crystal Devices

Electrical Specifications

Adjustable Output Voltage: 0 to ±25 V RMS

External Input Voltage: 0 to 5 VDC Square Wave

Voltage Resolution: 1.0 mV

Adjustable Internal Modulation Frequency: 0.5 to 150 Hz at 50% Duty Cycle

Switching Frequency: 2,000 ± 5 Hz, 50% Duty Cycle

Slew Rate: 10 V/µs

DC offset: ±10 mV

Max Output Current: 15 mA

AC Power: 85 - 264 VAC, 47 - 63 Hz, 25 VA

Fuse Rating: 125 mA, 5 x 20 mm SLO-BLO

Warm Up Time: 30 Minutes

Physical Specifications

External Input Connector: BNC

External Input Enable: Front Panel: INT/EXT enable Key

External Input Indicator: Green LED

Output Connector: BNC

Output Enable: Front Panel: OUTPUT ENABLE Key

Output Indicator: Green LED

Rotary Knob: Digital Encoder

Display: LCD 16 x 2

Power Switch: Rocker Switch

USB interface: USB Standard B Plug

Dimensions: 5.75" x 3" x 12.2" (146 mm x 78 mm x 309 mm)

Weight: 3.6 lbs

Operating Temperature Range: 10 to 40°C

Maximum Relative Humidity: 85%

Other: Tilting Rubber-Padded Feet
