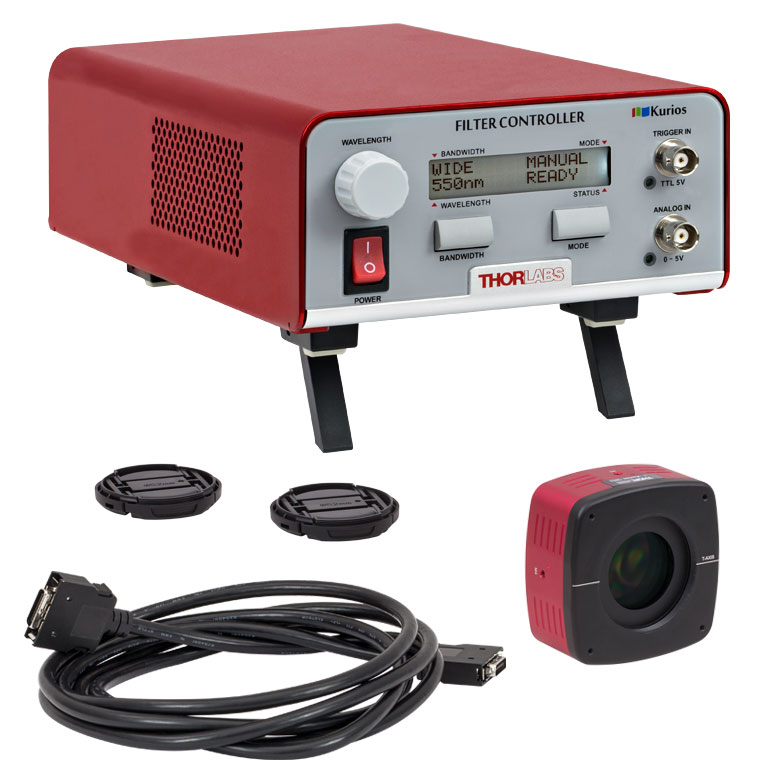

THORLABS KURIOS-WL1 Liquid Crystal Tunable Bandpass Filters (420 - 730 nm, 8-32 Taps, Fixed Wide Bandwidth)

Wavelength Range: 420 - 730 nm

Bandwidth (FWHM)(a): 35 nm at 550 nm

Switching Speed(b): <50 ms

Clear Aperture: Ø35 mm

Polarized Transmission(c): 45% at 550 nm

Out-of-Band Blocking: OD > 2

Minimum Incremental Step Size: 1 nm

Tuning Accuracy: ±FWHM/10

Angle of Incidence (Field of View): ±6°

Wavelength Uniformity: FWHM/4 over Clear Aperture

Damage Threshold:

- Pulsed (ns): 0.1 J/cm^2

- Pulsed (fs): 0.02 J/cm^2 (532 nm, 76 Hz, 100 fs, Ø162 µm)

- CW: 0.8 W/cmd (532 nm, Ø0.471 mm)

Filter Head Dimensions: 79.0 mm x 79.0 mm x 39.5 mm (3.11" x 3.11" x 1.56")

Filter Head Front/Rear Threading: SM2 (2.035"-40) Internal Threads

Filter Head Mounting Options: 8-32 (M4) Tap for Post Mounting (3 Places) 4-40 Taps for Cage System

Operating Temperature: 0 to 40°C

Storage Temperature: -15 to 65°C

(a) The bandpass width increases linearly with wavelength. See the Performance Plots in manual for details.

(b) The switching speed depends upon the initial and final wavelength. See the Performance Plots manual for details.

(c) Typical transmission for input light polarized parallel to the filter's transmission axis.

(d) The power density of your beam should be calculated in terms of W/cm. Please see the manual for details.
