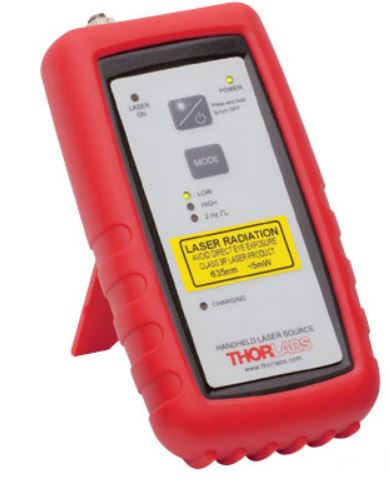

THORLABS HLS635 Handheld Laser Source (635 nm FC/PC)

Center Wavelength (Min / Typical / Max) : 625 nm / 635 nm / 640 nm

Operating Mode : Low, High, Pulse

CW Output Power (High/Low): >2.5 mW/1 mW

Pulsed Output Power (High/Low) : >2.5 mW/~0 mW

Pulse Frequency : 2 Hz, 50% Duty Cycle

Laser Class : 3R

Output Fiber : SM600

Fiber Connector : FC/PC

DC Input Voltage : 9 VDC, 2 A (9.2 VDC Max)

Battery Type : NiMH, 3.6 V

Battery Life : 12 Hours Max (In High Power Mode)

~45 Days (On Standby)

Battery Temperature Limits : -20 to 60 °C

Maximum Charge Time : ~100 Minutes

Battery Charge Temperature Range : 10 to 38 °C

Dimensions : 5.33" x 2.74" x 0.94"

(135.4 mm x 69.6 mm x 24 mm)

AC Adapter Input : 100 - 240 VAC, 0.48 A, 50 - 60 Hz

Max Power : 18 W

Output Voltage : 9 VDC, 2.2 A
