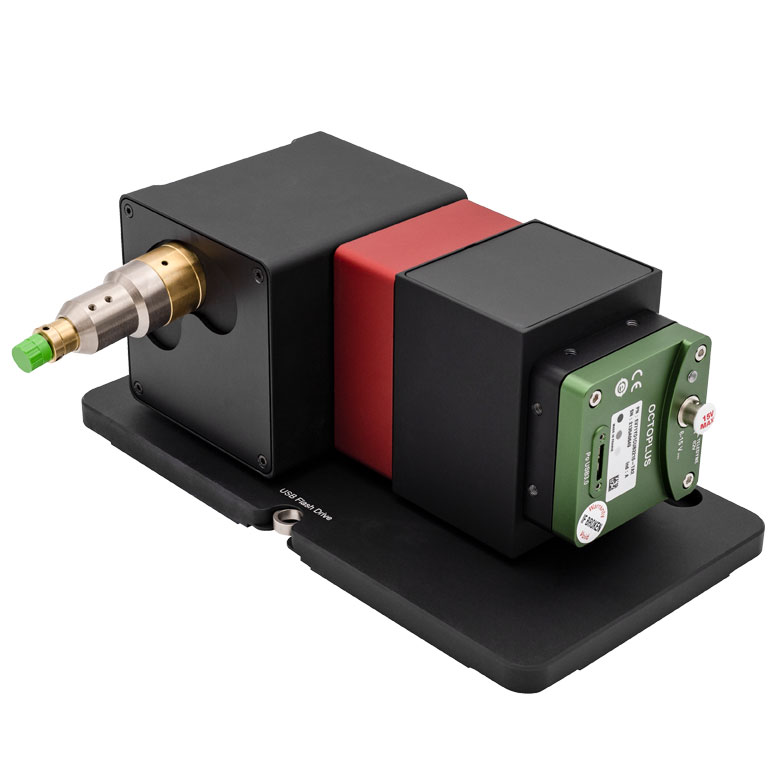

THORLABS HG10 Holographic Grating Spectrometer (810 - 965 nm)

Optical

Detection Range (Typical): 810 - 965 nm

Spectral Resolution (FWHM)(a): 0.25 nm

Spectral Accuracy: ±0.15 nm

Pixel Resolution(b): 0.08 nm

Wavelength Precision: ±0.1 nm

Signal-to-Noise Ratio: 40 dB

OCT A-Scan Resolution (FWHM)(c): 5.0 µm

OCT Imaging Depth: 2.5 mm

Stray Lightd: <0.1%

Included Patch Cable

Patch Cable Item #: P3-780A-FC-2e

Fiber Item #: 780HP

Connector: FC/APC, 2.0 mm Narrow Key

Numerical Aperture: 0.13

Grating

Item #: GP3512N

Type:Volume Phase Holographic Transmission

Line Density: 1200 Lines/mm

Design Wavelength: 930 nm

Camera

Sensor TypeSilicon

Sensor Range: 400 - 1100 nm

Interface: USB 3.0

Maximum Speed: 130 kHz

Minimum Speed: 1.5 kHz

Integration Time (Maximum): 654.6 µs

Acquisition Period (Maximum): 655.35 µs

Pixels/Line: 2048

Pixel Size: 10 µm x 200 µm

Dynamic Range: 69 dB

Analog-to-Digital Conversion (ADC) Resolution: 130 kHz @ 10 Bit <120 kHz @ 12 Bit

Readout Noise: 55 e-

Full Well Capacity (Typical): 140 ke-

Quantum Efficiency Coefficient: 54%

External Trigger

Maximum Frequency: 130 kHz

Input Interface: BNC

Signal: TTL

Input Voltage: 0 - 5 V

General

Interface to PC: USB 3.0

Dimensions (L x W x H), Without Cable and Fiber: 237.0 mm x 174.7 mm x 98.5 mm (9.33" x 6.88" x 3.88")

Weight (Spectrometer Only): 2.9 kg

(a) Ambient Operating Temperature 10°C to 35°C (Non-Condensing)

(b) Measured Argon Peaks Within the Detection Range

(c) Calculated Value: Bandwidth Over Amount of Pixels

(d) If the entire wavelength detection range is used.

(e) Quantified using a bandpass filter with an optical density of 4 in the blocking region. The stray light is calculated by comparing the light detected at wavelengths in the filter's blocking regions to the light detected without the filter in place.

(f) If the fiber patch cable is switched or replaced, the spectrometer will need to be recalibrated.
