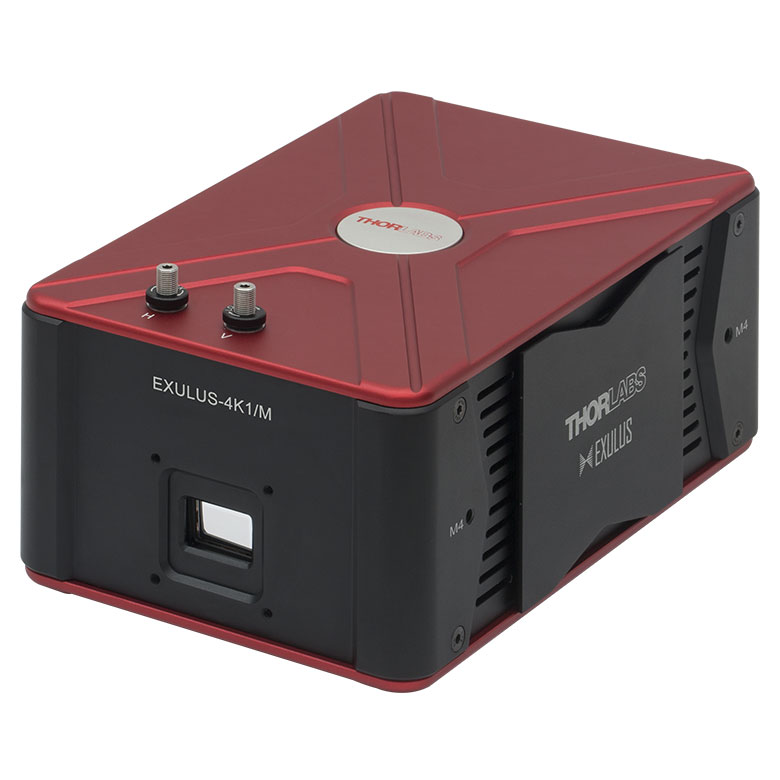

THORLABS EXULUS-4K1/M Exulus Spatial Light Modulator with 4K UHD Resolution (400 - 850 nm, M4 Taps)

Key Specifications(a):

Operating Wavelength: 400 - 850 nm

Panel Resolution: 3840 x 2160 (4K UHD)

Fill Factor: >90%

Panel Active Area: 15.6 mm x 9.2 mm

Pixel Pitch: 3.74 µm

Phase / Retardance Range(b): 2π at 633 nm

Frame Rate: 30 Hz

Fluctuation/ Flickering (RMS): <5%

Output Trigger: Yes (SMA)

(a) Complete specifications may be found on the manual.

(b) Angles of incidence other than 0° will result in phase shifts that differ from the programmed pattern. Angles of up to 10° are possible without significantly affecting performance.
