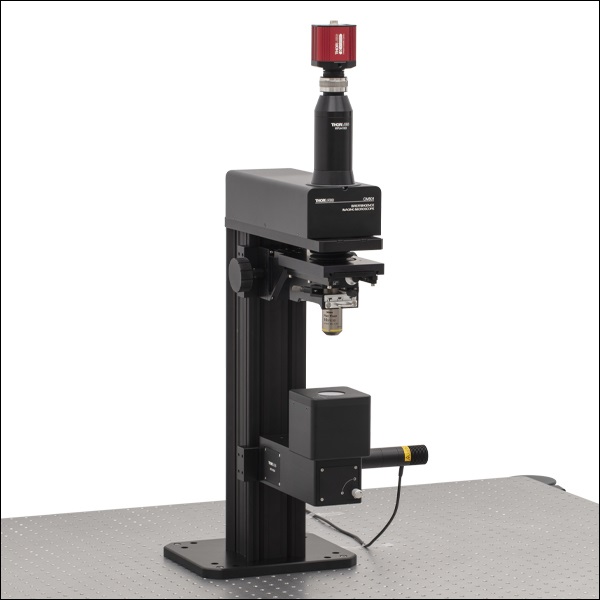

THORLABS CM501 Birefringence Imaging Microscope (Manual Objective Arm)

Light Source Wavelength(a): 632.8 nm ± 1 nmb

Microscope:Cerna® Series Microscope

Measurement Range:

- Retardance:

+Standard Retardance Range: 0 nm to 316 nm

+Low Retardance Range: 0 nm to 100 nm

- Azimuth: ±90°

Measurement Accuracy:

- Retardance

+ Standard Retardance Range: ±10 nm

+ Low Retardance Range: ±1 nm

- Azimuth:

+ Standard Retardance Range: ±3°

+ Low Retardance Range: ±1°

Measurement Rate: <20 s (Based on Default Camera Settings)

Field of View(c): 0.84 mm x 0.71 mm

Spatial Resolution(c): 1.055 μm

Interfaces: USB 2.0 and USB 3.0

Imager Resolution : 2448 x 2048 Pixels (H x V)

Dimensions (D x W x H): 469.6 mm x 354.1 mm x 836.3 mm (18.5" x 13.9" x 32.9")

Weight: 21.9 kg (48.3 lbs)

Operating Temperature: 0°C to 40°C

Storage Temperature: -15°C to 65°C

(a) Wavelength is customizable upon request. Contact Tech Support for details.

(b) The M625L4 LED is used in combination with a FL632.8-1 filter to provide a 633 nm light source.

(c) Field of view and spatial resolution are based on the standard configuration that includes a 10X objective (Item # N10X-PF).
