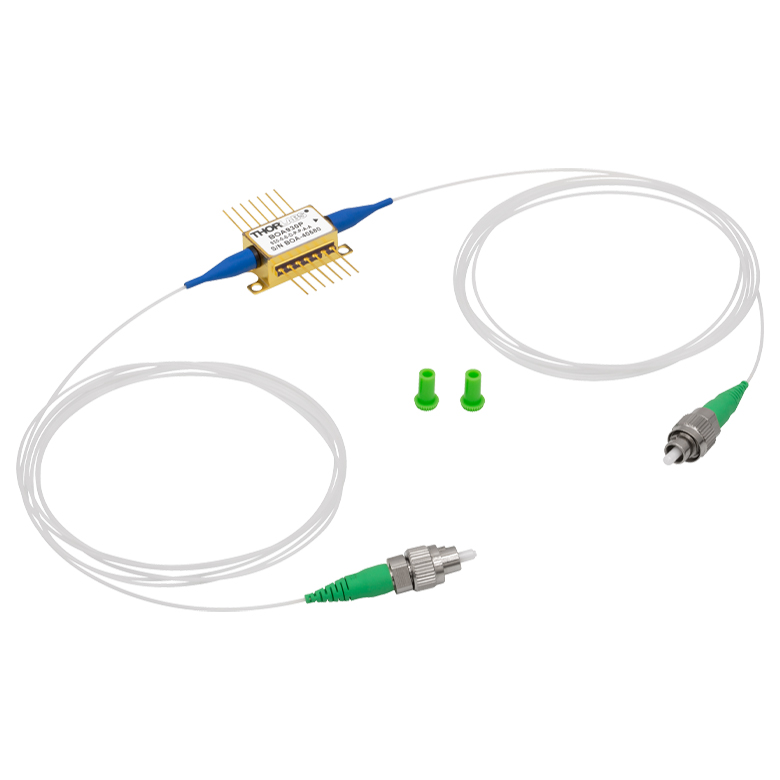

THORLABS BOA1084S Booster Optical Amplifier (1685 nm, SM)

Center Wavelength(b): 1685 nm

Operating Current (Max): 700 mA

3 dB Bandwidth: 110 nm

Saturation Output Power (@ -3 dB)(c,d): 17 dBm

Small Signal Gain (@ Pin = -20 dBm)(c,d): 20 dB

Noise Figure (Max)(c,d): 10.6 dB

Fiber Type: SMF-28e

(a) All specifications are typical unless otherwise noted.

(b) This is the center wavelength of the amplified spontaneous emission (ASE), and is not necessarily the operating wavelength. An operating wavelength of 1679 nm was selected for testing to yield the specified saturation output power.

(c) Measured at 1679 nm

(d) Measured at the Operating Current
