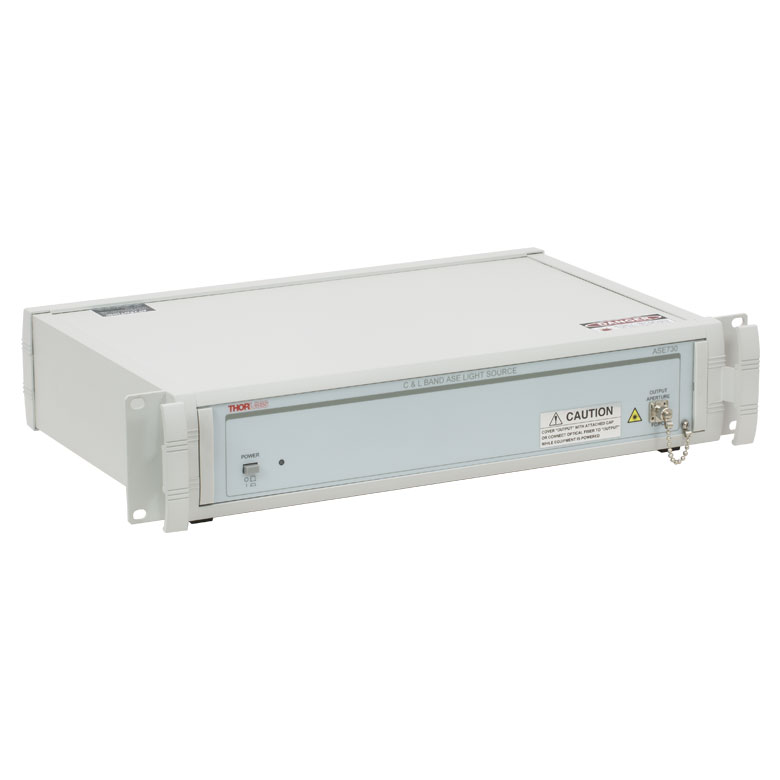

THORLABS ASE730 Test Source

Total Output Power: >+15 dBm (30 mW)

Spectral Power Density (Typical):

>-18 dBm/nm at 1530 nm; >-11 dBm/nm at 1540-1600 nm;

>-18 dBm/nm at 1610 nm

Stability:

Short Term(a): ±0.001 dB

Long Term (b): ±0.05 dB

Wavelength Range: 1530 nm - 1610 nm

Output Connector: FC/PC

Output Fiber: SMF-28

Size (mm): 88 (H) x 483 (W) x 352 (D); 19" Rack-Mount Compatible

Operation Temperature: 0°C to 40°C

Storage Temperature: -10°C to 45°C

(a) 15 Minutes, After 1 Hour Warm-Up Period

(b) 48 Hours
