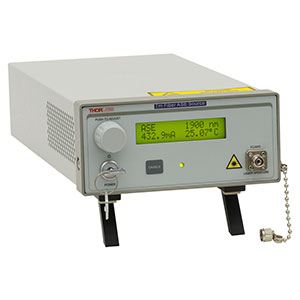

THORLABS ASE1900 ASE Source (Broadband 2 µm)

Parameter Min:

- Emission Center Wavelength: 1860 nm

- Emission Bandwidth (-20 dB): 80 nm

- Drive Current: -

- Output Power at Maximum Drive Current: 40 mW

- Polarization: Unpolarized

- Power Stability (Ambient Temperature ±2 °C): <±1% Over 24 Hours (After 15 minute Warm Up)

- Relative Intensity Noise (RMS, 10 Hz - 1 MHz): 0.05% (Typical)

- Output Fiber Type: SMF-28 Ultra or Equivalent

- Output Fiber Mode Field Diameter (Estimated): 11 µm @ 1900 nm

- Output Fiber NA: 0.14

- Output Fiber Connector: 2.0 mm Narrow Key FC/APC

Parameter Typical:

- Emission Center Wavelength: 1870 nm

- Emission Bandwidth (-20 dB): 100 nm

- Drive Current: -

- Output Power at Maximum Drive Current: 50 mW

- Polarization: Unpolarized

- Power Stability (Ambient Temperature ±2 °C): <±1% Over 24 Hours (After 15 minute Warm Up)

- Relative Intensity Noise (RMS, 10 Hz - 1 MHz): 0.05% (Typical)

- Output Fiber Type: SMF-28 Ultra or Equivalent

- Output Fiber Mode Field Diameter (Estimated): 11 µm @ 1900 nm

- Output Fiber NA: 0.14

- Output Fiber Connector: 2.0 mm Narrow Key FC/APC

Parameter Max:

- Emission Center Wavelength: 1880 nm

- Emission Bandwidth (-20 dB): -

- Drive Current: 450 mA

- Output Power at Maximum Drive Current: 70 mW

- Polarization: Unpolarized

- Power Stability (Ambient Temperature ±2 °C): <±1% Over 24 Hours (After 15 minute Warm Up)

- Relative Intensity Noise (RMS, 10 Hz - 1 MHz): 0.05% (Typical)

- Output Fiber Type: SMF-28 Ultra or Equivalent

- Output Fiber Mode Field Diameter (Estimated): 11 µm @ 1900 nm

- Output Fiber NA: 0.14

- Output Fiber Connector: 2.0 mm Narrow Key FC/APC
