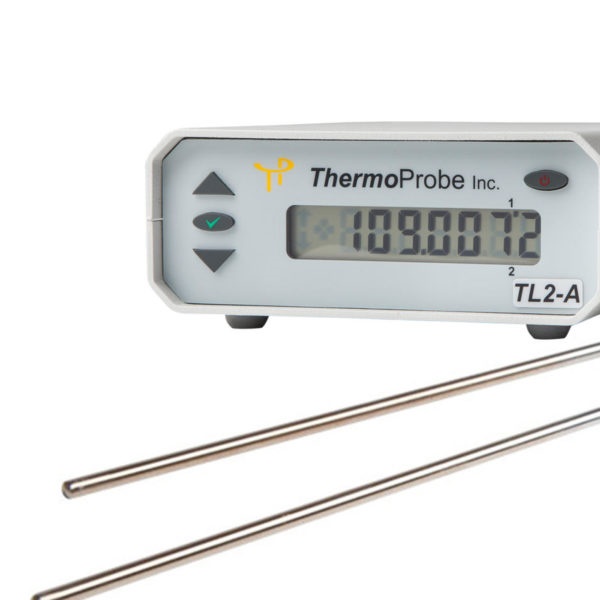

Thermoprobe TL2-A Precision Bench-top Laboratory Reference Thermometer – Dual Channel & USB Data Logger (-200°C~962°C)

Resolution: 0.01 or 0.001 Degrees, 0.0001 Ohms

Temperature Range: -200°C to 962°C

Standard Calibrated Accuracy: ±0.06°F from -30 to 320°F, ±0.03°C from -36 to 160°C

Calibration: NIST Traceable Resistance and Temperature

Display: 1.3cm character LCD

Zero Offset adjustment

Temperature triggered SPDT relay output (Channel 1)

Stores and displays Average, Lowest & Highest readings.

Arrows indicating increasing/decreasing temperature.

Ambient operating range: 15°C to 30°C

Accepts 100Ω and 200Ω RTD, PRT or SPRTr

Switchable Switchable units °C ,°F,°K or Ω

Standard 5 Point Resistance Calibration: 20Ω +/-0.002°C, 100Ω +/-0.007°C , 190Ω +/-0.015°C 265Ω +/-0.021°C, 425Ω +/-0.032°C

Standard Sensors: 100Ω Precision wire wound platinum RTD

Accuracy +/-0.05°F (0.03°C)

Standard 5 Point Temperature Calibration: -20°C, 0°C, 49°C, 93°C & 149°C

Standard Sensors: 30cm, Recommended Minimum Immersion Depth: 12cm sheath with 1.5m cable

2-Channel Sensor coefficient entry -via USB & included software

Nominal Body Dimensions: 18.4 x 13.3 x 5.7cm

Calibration report, USB cable, Flash drive, interface software and country specific power adaptor are included
