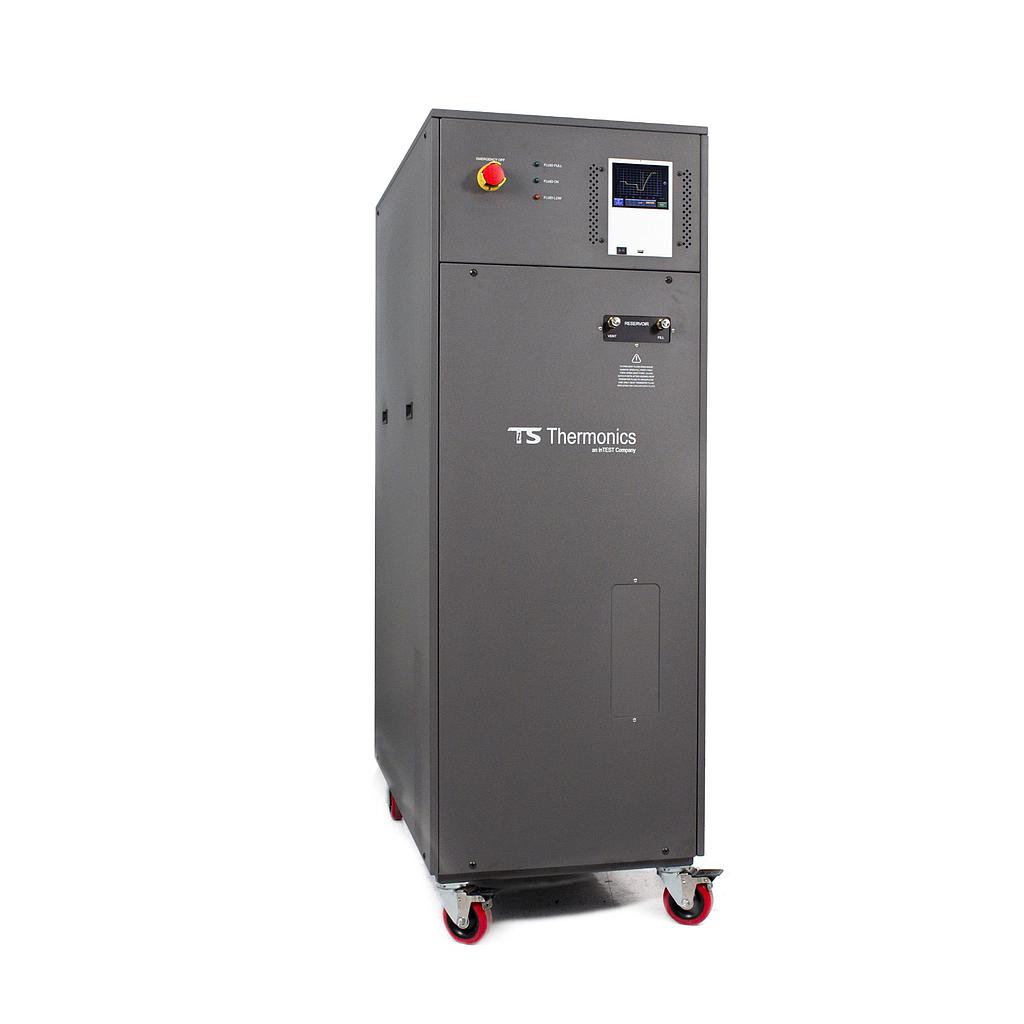

Thermonics A-80-2400 Process Chillers (2.4kW @ -80°C)

Cooling and heating capacity

Capacity:

Condenser: Air-cooled

Process Heater: 1.7kW

Process Fluid Set Point Range: -85 to +50°C

Fluid Stability: ±0.5°C (at rated load)

Pump and process fluid

Pump: Gear

Process Fluid: HFE-7100 or equivalent low temp. fluid

Wetted Materials: Standard materials include copper, nickel, brass, and plastic. Optional: Fully stainless steel

Flow Rate: 4 GPM (15.1 LPM) at 50 PSIG. Optional: Flow monitoring and control

Available Pressure: 50 PSIG (or less), Optional: Pressure monitoring and control

Fluid Connections: 0.75” NPT

Controls and compliance

User Interface: 5.7” color touch-screen with temperature graphing and charting

Temperature Measurement: Range: -210 to +680°C, Resolution: 0.1°C full scale

Remote Communications: Ethernet, Serial-USB, Web server. Optional: RS-232

Alarms: Low Flow, Low Reservoir, Out-of-temp Range. Optional: Drip Tray

Diagnostics: Runtime hours (controller, chiller, compressor, pump), system performance log, valve activation counts, enclosure temperature

Chiller Compliance: CE / RoHS / designed to meet UL1995/UL61010

Operating requirements

Ambient Temperature Range: 10 to 32°C (25°C nominal)

Power Requirement: 3-phase, 208 to 230v, 60Hz

System Dimensions (approx.): 43.0”W X 60.0”D X 78.0" H (109.2 x 152.4x 198.1cm)
