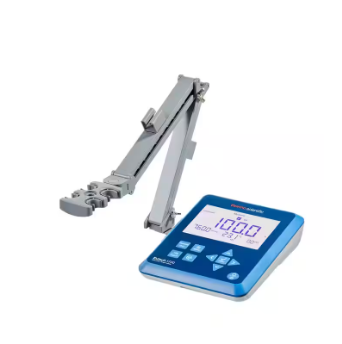

Thermofisher Eutech 1730 DO bench meters (0.0~300.0%, 0.00~30.0 mg/L)

Dissolved oxygen as percent saturation

Range: 0.0 to 300.0 % saturation

Resolution: 0.1, 1 % saturation

Relative accuracy: ±2 % saturation ± 1 LSD

Calibration types: 100 % and 0 %

Barometric pressure compensation: 400.0 to 850.0 mmHg; 0.533 to 1.133 bar

Salinity compensation: 0.0 to 50.0 ppt

Dissolved oxygen as concentration

Units: mg/L or ppm

Range: 0.00 to 30.0 mg/L or ppm

Resolution: 0.01, 0.1 mg/L or ppm

Relative accuracy: ±0.02 mg/L or ppm ± 1 LSD

Calibration points: 1 point, custom value

Barometric pressure compensation: 400.0 to 850.0 mmHg; 0.533 to 1.133 bar

Salinity compensation: 0.0 to 50.0 ppt

Temperature

Range: -5.0 to 105.0 ºC

Resolution: 0.1 ºC

Relative accuracy: ±0.3 ºC

Calibration points: 1 point

Offset adjustment: Up to ±5 ºC

Features

Display: 5” backlit LCD

Time and date: Yes

Time format: 12 hour AM/PM

Date format: Selectable, DD-MM-YYYY or MM-DD-YYYY

Read types: Continuous, Auto-Read, Timed

Timed interval: 5 seconds to 60 minute

Features - continued

Data log: 500 sets with time and date

Calibration log: Active dissolved oxygen, temperature with time and date

Calibration alarm: Yes, 1 to 168 hours or off

Sleep mode: Yes, optional

Self-test: Automatic with startup

Memory: Non-volatile

Input: BNC and ATC

Data output: Computer or printer

Data output format: CSV or print

Certifications: CE, cTUVus, FCC Class B, CES-001, KC, RCM

Enclosure: IP-54

Power: 100-240 VAC, 50-60Hz, 9 DC adapter, 1.3A

Dimensions (L x W x H): 198.3 mm x 155.2 mm x 61.7 mm

Weight: 700 grams

Environmental conditions

Environmental conditions: Indoors

Altitude: Up to 2.000 metres

Operating temperature: 5°C to 45°C

Operating relative humidity: 5 to 85%, non-condensing

Storage temperature: -20°C to 60°C

Storage relative humidity: 5 to 85%, non-condensing

Mains fluctuation: ±10% of range (100-240VAC)

Installation category: II

Pollution degree: 2

Protection class: III
