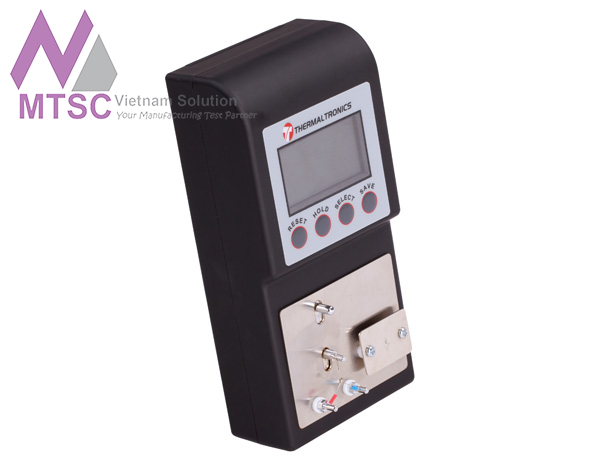

Thermaltronics TMT-ST10 Solder Tip Tester

Line Voltage: DC 9V Battery

Temperature:

- Test Range: 0°C - 600°C / 32°F - 1200°F

- Resolution: 1°C/1°F

- Accuracy: 1% ±3°C/±6°F

Resistance:

- Test Range: 0 - 100 mV (AC)

- Resolution: 0.1 mV (AC)

- Accuracy: ± (3%+2 Bytes)

Voltage:

- Test Range: 0 - 100Ω

- Resolution: 0.1Ω

- Accuracy: ± (1%+2 Bytes)

Thermal Sensor: K Type Thermocouple

Size (W x H x D): 85mm x 175mm x 48mm

Weight: 0.35KG

LCD Display: 48mm x 26.5mm

USB Port: Mini USB Port

Data Storage: 32,640 Events

CERTIFICATION MARKS

PACKING LIST

TMT-ST10Solder Tip Tester

ST-CABLE-1Mini USB Data Cable

ST-SNSR-1Temperature Sensors (10 Pack)

ST-GWIRE-X1Ground Wire

1ST-GWIRE-1 = EU Plug, ST-GWIRE-2 = US Plug, ST-GWIRE-3 = CN Plug

SOFTWARE FUNCTIONALITY
