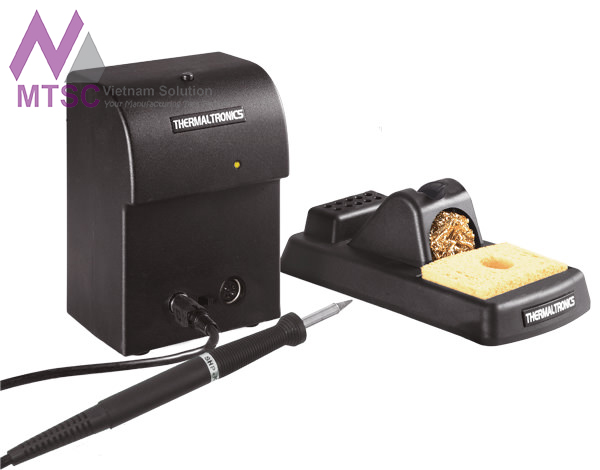

Thermaltronics TMT-2000S Soldering Station

Input Line Voltage: 100-240 VAC, 55W

Tip to Ground Potential: 2mV, true RMS 50-500Hz

Tip to Ground Resistance: <2 Ohms DC

Idle Temperature Stability: +/- 1.1°C (2°F)

Maximum Enclosure Temperature: 50°C (122°F)

Fuse: 250V 1A

Output Power (Maximum): 50 Watts

Output Frequency: 470 Khz

Size (W x H x D): 110mm x 155mm x 92mm

Weight:1.3 KG

Input Line Frequency: 50/60 Hz

CERTIFICATION MARKS

PACKING LIST

TMT-2000PS: Power Supply

SHH-4: Soldering Handpiece Holder

SHP-K1: Soldering Handpiece

RMP-1: Tip Removal Pad

CC-1: Connection Cable

BC-1: Brass Curls

SPG-1: Sulphide Free Sponge
1The handpiece will vary based on system configuration.

LIST OF K SERIES TIP CARTRIDGES:

LIST OF P SERIES TIP CARTRIDGES:


LIST OF S SERIES TIP CARTRIDGES:

LIST OF DS-KIT-3 - DESOLDERING KIT:


LIST OF TZ-KIT-3 - TWEEZERS KIT:
