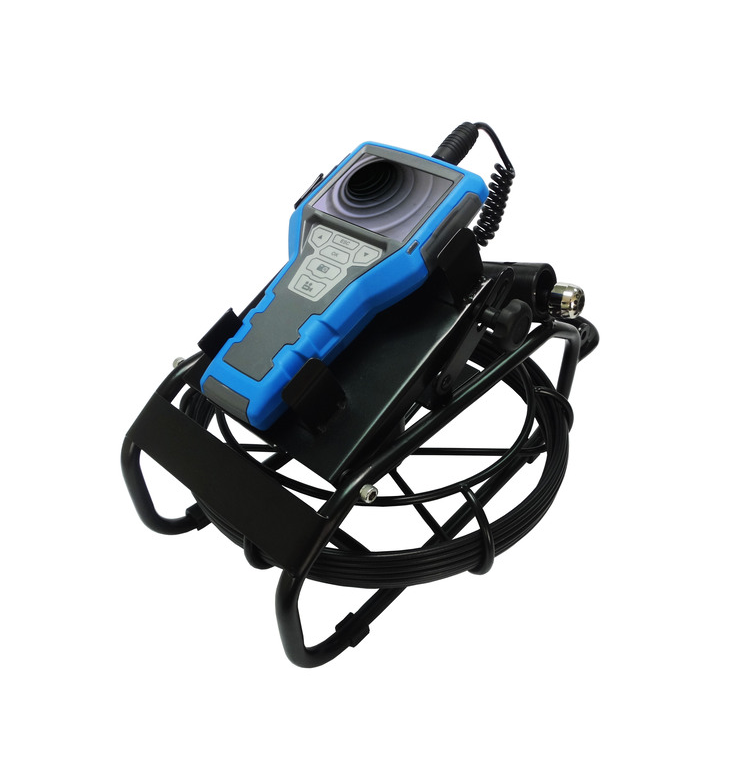

Texim TX101-2810W Inspection Camera (720 x 575 pixel; 5~100 cm)

System Device:

Power: DC5V

Display: 3.5 inches TFT LCD Monitor

Resolutions: 640 x 480 pixels

Interface: Mini USB 1.1/ AV out

Battery: Rechargeable Li-Ion Battery (3.7V 2350mAh)

Video Out Format: NTSC & PAL (640 x 480 Video to TV)

Recording Medium: 8G SD card (The capacity can be used up to 32G)

Photo Resolution & Storage Format: JPEG (640 x 480)

Video Resolution & Storage Format: AVI (640 x 480)

Language: Supports 15 Languages

Zoom: 2 times Digital Zoom in and Zoom out

Mirror: Reflecting Object Surface

Illuminant Intensity: Adjustable

Photo / Video Replay: Supported

2 Photos Comparison: Supported

Camera Cable:

Image Sensor: CMOS

Tube OD: 28 mm

Cable Length: 10 M

Exposure: Automatic

White Balance: Automatic

Field of View: 160 degrees

Resolution: 720 x 575 pixels

Focus Distance: 5 ~ 100 cm

Pipe from DN: 40 ~ 120mm

Operating Temperature: -20 to 70 degrees Celsius

Relative Humidity: 95% max

Waterproof: IP68(Insertion tube and tip)

Material: Copper with nickel coating

Outer Sheathing: Glass Fiber

Light Source: Bright LED light

Lamp Type: LED

Brightness Control: Manual

Number of Lamps: 12 White LEDs 3500mcd

Lamp Output: 7300 Lux at 20 mm

Lamp Life: 10000 hours (average)

Power Supply: DC 3.7V +/-5%
