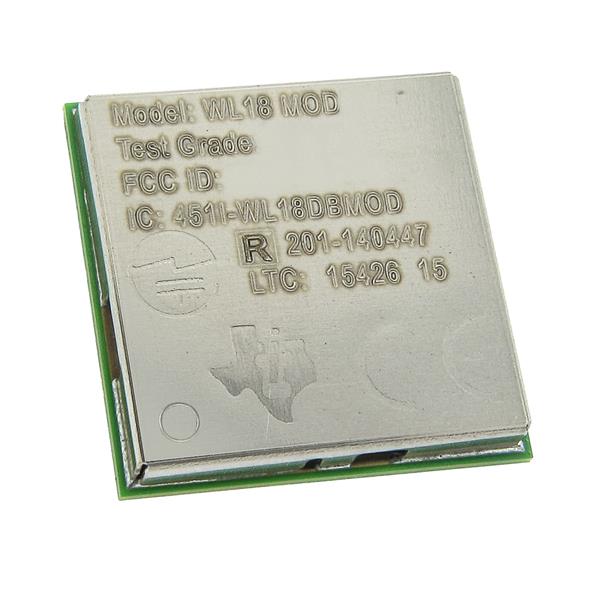

Texas Instruments WL1807MODGIMOCT WiFi Modules WL18xxMOD Dual-Band Ind Mod A 595-WL1807MODGIMOCR

Data Rate: 100 Mb/s

Frequency: 2.4 GHz, 5 GHz

Dimensions: 13.4 mm x 13.3 mm x 2 mm

Unit Weight: 1.849 g

Output Power: 17.3 dBm

Interface Type: SDIO, UART

Moisture Sensitive: Yes

Supply Voltage - Max: 4.8 V

Supply Voltage - Min: 2.9 V

Antenna Connector Type: RF

Operating Supply Voltage: 4.8 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n

Supply Current Receiving: 85 mA

Supply Current Transmitting: 420 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: BLE, Bluetooth 5.1
