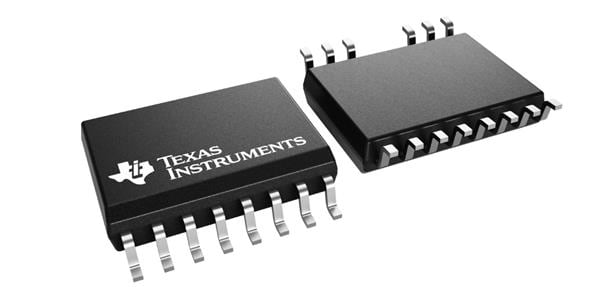

Texas Instruments UCC21551CDWKR Dual Low-Side, Dual High-Side 4A/6A 5kVRMS dual-ch annel isolated gate

Features: Fast Enable for Power Sequencing, UVLO Protection for all Power Supplies

Shutdown: No Shutdown

Fall Time: 8 ns

Rise Time: 8 ns

Logic Type: CMOS

Mounting Style: SMD/SMT

Output Current: 6 A

Isolation Voltage: 5000 Vrms

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3 V

Pd - Power Dissipation: 950 mW

Propagation Delay - Max: 45 ns

Operating Supply Current: 4.7 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
