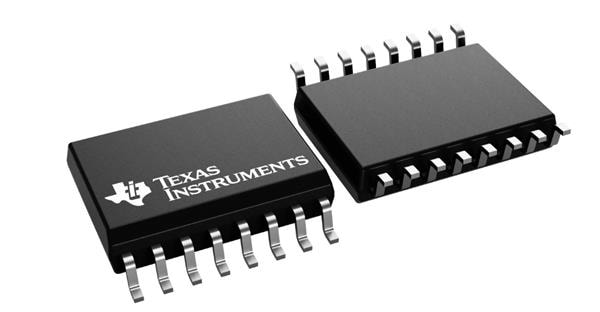

Texas Instruments UCC21550ADWR Reinforced Isolation Gate Driver P4/N6A DUAL CH ISO G DIC 5V UVLO DISABLE

Features: Fast Disable for Power Sequencing

Shutdown: No Shutdown

Fall Time: 8 ns

Rise Time: 8 ns

Technology: Si

Mounting Style: SMD/SMT

Output Voltage: 25 V

Isolation Voltage: 1500 Vrms

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3 V

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 950 mW

Propagation Delay - Max: 45 ns

Operating Supply Current: 4.7 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
