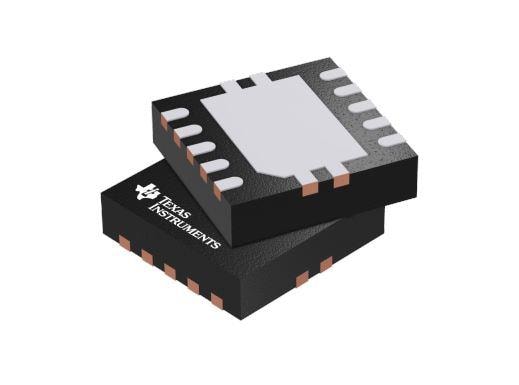

Texas Instruments TPS7A9601DSCR Low-Noise & Low-Dropout Voltage Regulator 2-A ultra-low noise ultra-high PSRR RF

Polarity: Positive

Tolerance: 1 %

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 400 mV to 5.5 V

Dropout Voltage: 215 mV

Line Regulation: 2.1 uV/V

Load Regulation: 0.03 mV

Number of Outputs: 1 Output

Input Voltage - Max: 5.7 V

Input Voltage - Min: 1.9 V

Output Voltage Range: 400 mV to 5.5 V

Dropout Voltage - Max: 350 mV

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 70 dB
