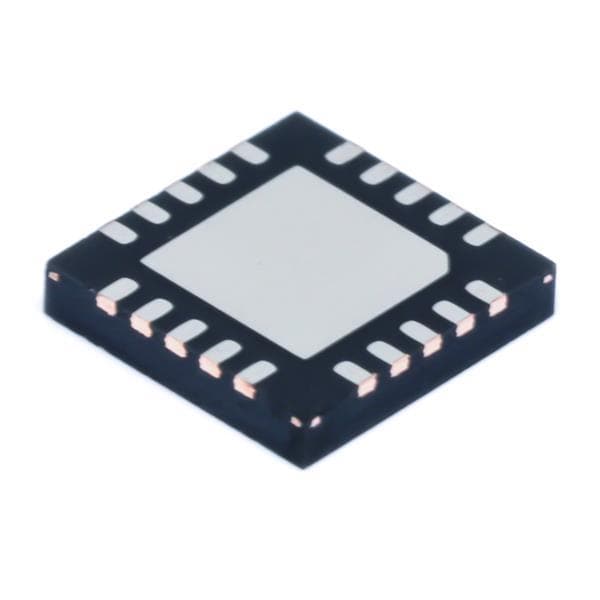

Texas Instruments TPS7A8300RGWT LDO Voltage Regulators 2A LDO VTG Reg A 595-TPS7A8300RGWR

Polarity: Positive

Output Type: Adjustable

Unit Weight: 70 mg

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 800 mV to 5.2 V

Development Kit: TPS7A8300EVM-209

Dropout Voltage: 85 mV

Line Regulation: 0.003 %/V

Load Regulation: 0.0001 %/A

Number of Outputs: 1 Output

Quiescent Current: 2.8 mA

Reference Voltage: 800 mV

Moisture Sensitive: Yes

Input Voltage - Max: 6.5 V

Input Voltage - Min: 1.1 V

Dropout Voltage - Max: 200 mV

Maximum Output Voltage: 5 V

Operating Supply Current: 2.8 mA

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 40 dB
