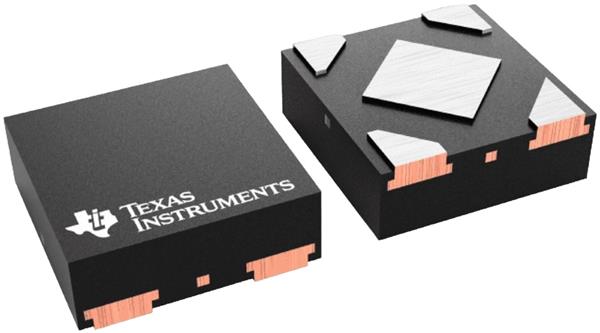

Texas Instruments TPS7A2050PDQNRM3 Low-Noise & Low-Dropout Voltage Regulator 300-mA ultra-low-noi se low-IQ low-dropou

Polarity: Positive

Tolerance: 1 %

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 300 mA

Output Voltage: 800 mV to 5.5 V

Number of Outputs: 1 Output

Quiescent Current: 6.5 uA

Input Voltage - Max: 6 V

Input Voltage - Min: 1.6 V

Output Voltage Range: 800 mV to 5.5 V

Dropout Voltage - Max: 690 mV

Voltage Regulation Accuracy: 1.5 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 95 dB
