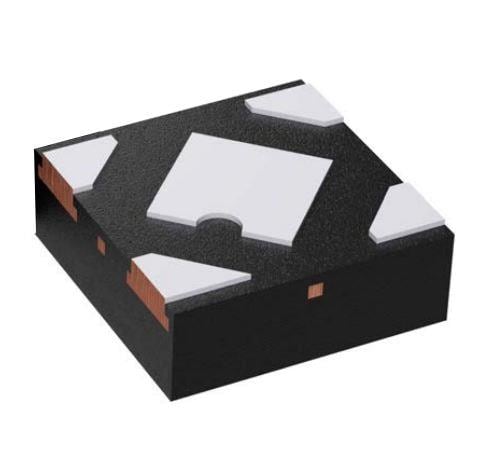

Texas Instruments TPS7A0333PDQNR3 Nanopower Low-Dropout Voltage Regulator Nanopower-IQ 200nA 2 00mA low-dropout (LD

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 3.3 V

Dropout Voltage: 310 mV

Line Regulation: 5 mV

Load Regulation: 50 mV

Number of Outputs: 1 Output

Quiescent Current: 200 nA

Input Voltage - Max: 6 V

Input Voltage - Min: 1.5 V

Dropout Voltage - Max: 310 mV at 200 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 55 dB
