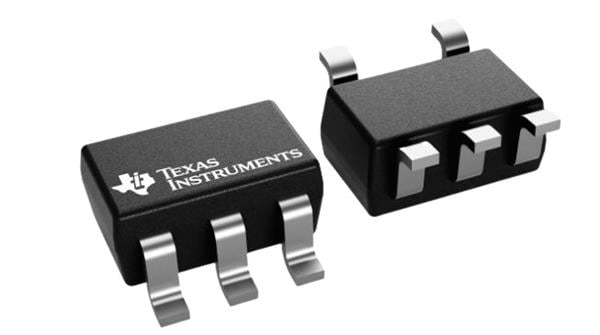

Texas Instruments TPS71501QDCKRM3Q1 Low-Quiescent LDO Automotive 50mA 24V ultra-low-IQ low-dr

Polarity: Positive

Output Type: Adjustable

Mounting Style: SMD/SMT

Output Current: 50 mA

Output Voltage: 1.2 V to 15 V

Dropout Voltage: 415 mV

Line Regulation: 20 mV

Load Regulation: 22 mV

Number of Outputs: 1 Output

Quiescent Current: 3.2 uA

Input Voltage - Max: 24 V

Input Voltage - Min: 2.5 V

Dropout Voltage - Max: 525 mV at 50 mA, 750 mV at 50 mA

Voltage Regulation Accuracy: 4 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
