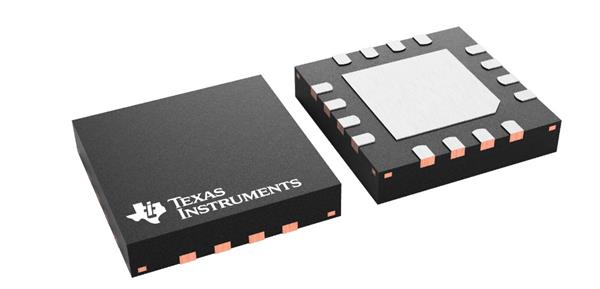

Texas Instruments TMUX8108RUMR Multiplexers 100-V flat RON sin gle 8:1 multiplexers

Bandwidth: 200 MHz

Supply Type: Single Supply, Dual Supply

Configuration: 1 x 8:1

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Dual Supply Voltage: 10 V to 50 V

Off Isolation - Typ: - 110 dB

On Resistance - Max: 55 Ohms

Supply Voltage - Max: 100 V

Supply Voltage - Min: 10 V

Pd - Power Dissipation: 720 mW

Propagation Delay Time: 550 ps

Operating Supply Voltage: 10 V to 100 V

Maximum Dual Supply Voltage: 50 V

Minimum Dual Supply Voltage: 10 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
