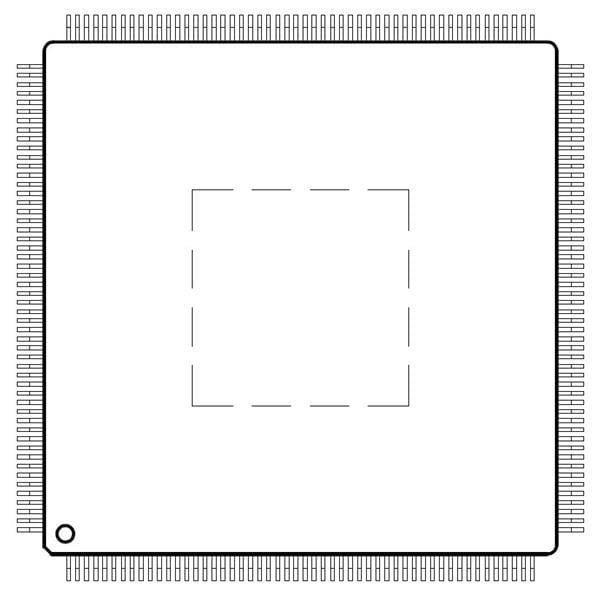

Texas Instruments TMS320C6713BPYP200 DSPs Floating-Pt Dig Sig Processors

Core: C67x

Width: 28 mm

Height: 1.45 mm

Length: 28 mm

I/O Voltage: 3.3 V

Unit Weight: 2.622 g

Data RAM Size: 256 kB

Data Bus Width: 32 bit

Mounting Style: SMD/SMT

Number of I/Os: 16 I/O

Number of Cores: 1 Core

Instruction Type: Floating Point

Moisture Sensitive: Yes

Program Memory Size: 8 kB

Program Memory Type: Asynchronous SRAM, Synchronous SBSRAM, SDRAM

L1 Cache Data Memory: 4 kB

Maximum Clock Frequency: 200 MHz

Operating Supply Voltage: 1.2 V

L1 Cache Instruction Memory: 4 kB

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: 0 C
