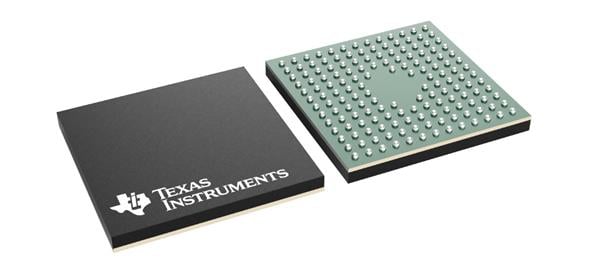

Texas Instruments TM4C123BH6NMRI ARM Microcontrollers 32-bit Arm® Cort ex®-M4F-based MC

Core: ARM Cortex M4F

Data RAM Size: 32 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: CAN, I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 120 I/O

Development Kit: SW-TM4C

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 256 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.63 V

Supply Voltage - Min: 3.15 V

Maximum Clock Frequency: 80 MHz

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
