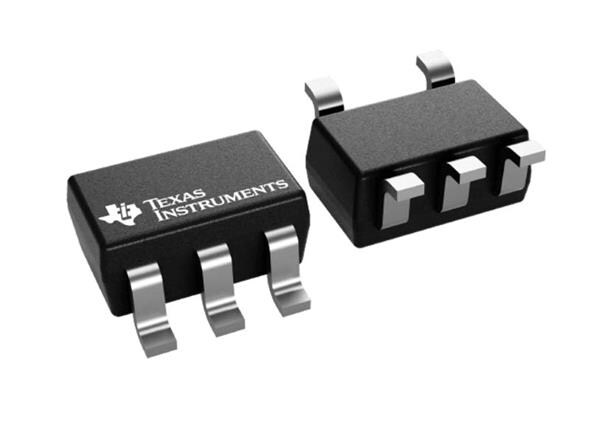

Texas Instruments TLV9031DCKR Analog Comparators Single low-voltage c omparator with push-

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Push-Pull

Mounting Style: SMD/SMT

Comparator Type: Precision

Development Kit: DIP-ADAPTER-EVM

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.65 V

Propagation Delay Time: 0.1 us

Ib - Input Bias Current: 5 pA

Ios - Input Offset Current: 1 pA

Vos - Input Offset Voltage: 1.5 mV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 70 dB

PSRR - Power Supply Rejection Ratio: 95 dB
