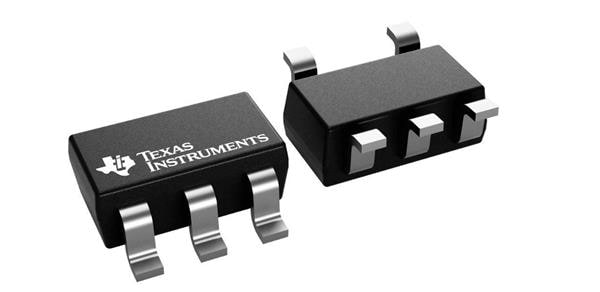

Texas Instruments TLV77028PDBVR Low Dropout Regulator 50mA small-size high -PSRR low-dropout (L

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 50 mA

Output Voltage: 600 mV to 3.3 V

Dropout Voltage: 45 mV

Line Regulation: 0.01 %/V

Load Regulation: 85 uV/mA

Number of Outputs: 1 Output

Quiescent Current: 80 uA

Input Voltage - Max: 5.5 V

Input Voltage - Min: 1.4 V

Output Voltage Range: 600 mV to 3.3 V

Dropout Voltage - Max: 230 mV

Operating Temperature Range: - 40 C to + 125 C

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 56 dB
