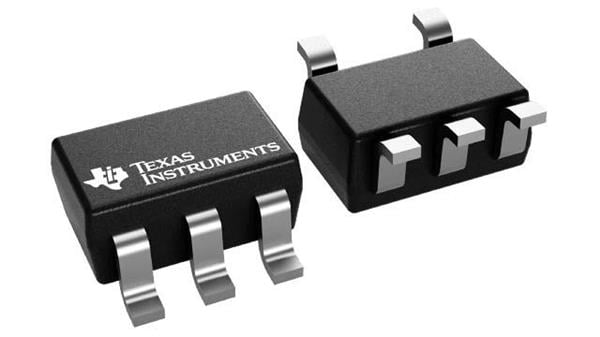

Texas Instruments TLV70033DCKRG4 Low-Dropout Regulator 200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 3.3 V

Dropout Voltage: 175 mV

Line Regulation: 1 mV

Load Regulation: 1 mV

Number of Outputs: 1 Output

Quiescent Current: 31 uA

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2 V

Dropout Voltage - Max: 250 mV

Operating Temperature Range: - 40 C to + 125 C

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 68 dB
