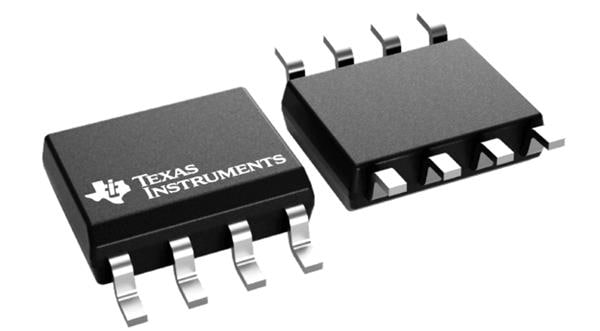

Texas Instruments TLV2888DR Operational Amplifiers Dual, 36V, 15MHz zero-drift CMOS precision operational amplifier

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Technology: Zero-Drift

Output Type: Rail-to-Rail

Amplifier Type: Differential

Mounting Style: SMD/SMT

SR - Slew Rate: 40 V/us

THD plus Noise: 0.00012 %

Number of Channels: 2 Channel

Supply Voltage - Max: 36 V

Supply Voltage - Min: 4.5 V

Ib - Input Bias Current: 50 pA

Operating Supply Current: 1.5 mA

Ios - Input Offset Current: 100 pA

Output Current per Channel: 42 mA

Vos - Input Offset Voltage: 3 uV

Maximum Dual Supply Voltage: 18 V

Minimum Dual Supply Voltage: 2.25 V

GBP - Gain Bandwidth Product: 14 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 175 fA/sqrt Hz

en - Input Voltage Noise Density: 7.6 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 118 dB

PSRR - Power Supply Rejection Ratio: 150 dB
