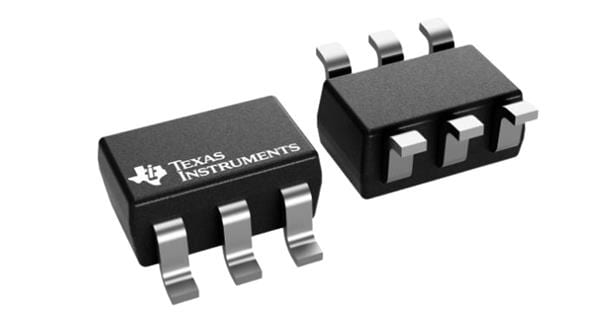

Texas Instruments TLV1811LDCKR Analog Comparators 40V 5UA SINGLE CHANN EL COMPARATOR

Shutdown: Shutdown

Input Type: Rail to Rail

Output Type: Push-Pull

Mounting Style: SMD/SMT

Comparator Type: Differential

Number of Channels: 1 Channel

Supply Voltage - Max: 40 V

Supply Voltage - Min: 2.4 V

Propagation Delay Time: 420 ns

Ib - Input Bias Current: 0.15 pA

Ios - Input Offset Current: 10 fA

Vos - Input Offset Voltage: 500 uV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR - Power Supply Rejection Ratio: 100 dB
