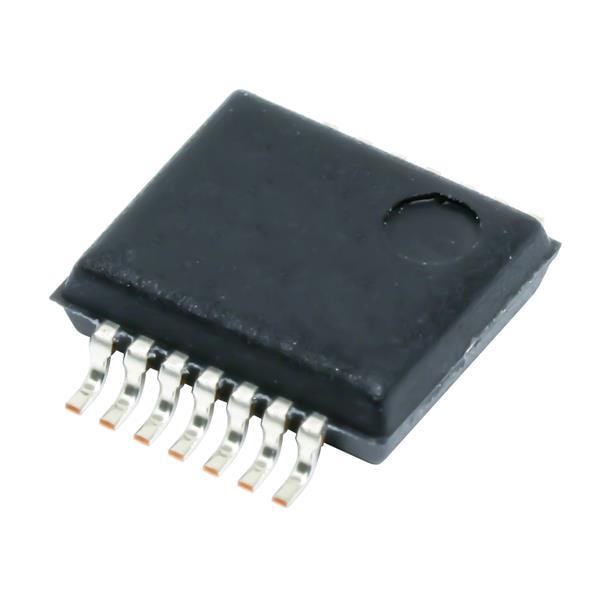

Texas Instruments SN74LVCU04ADBR Inverters Hex

Function: Inverter

Input Type: CMOS, TTL

Logic Type: CMOS

Output Type: CMOS

Unit Weight: 121.800 mg

Logic Family: LVCU

Mounting Style: SMD/SMT

Number of Circuits: 6 Circuit

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2 V

Number of Output Lines: 6 Output

Propagation Delay Time: 3.8 ns

Low Level Output Current: 24 mA

Operating Supply Voltage: 3.3 V

High Level Output Current: - 24 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
