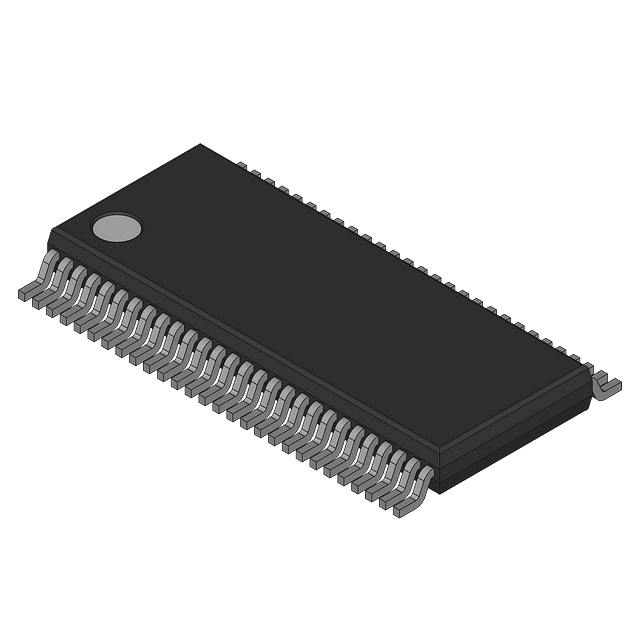

Texas Instruments SN74CB3Q16211DGVR Digital Bus Switch ICs PCM Universal Async Rcvr Transmitter

Width: 4.4 mm

Height: 1.05 mm

Length: 11.3 mm

Logic Type: CMOS

Unit Weight: 145 mg

Organization: 12 x 1:1

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Number of Bits: 24 bit

On Resistance - Max: 9 Ohms

Supply Current - Max: 3 uA

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.3 V

Propagation Delay - Max: 150 ps

Operating Supply Voltage: 2.3 V to 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
