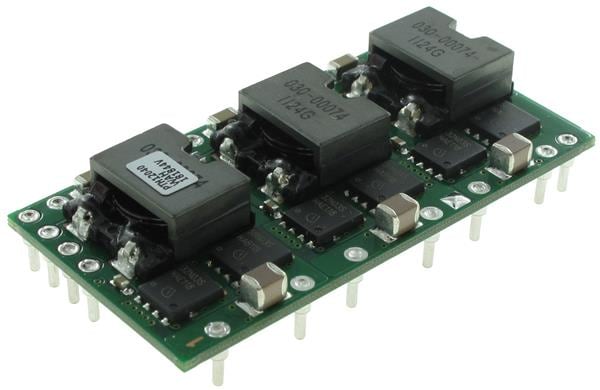

Texas Instruments PTH12040WAH Non-Isolated / PoL 50-A 8-14V-Inp Wide Out Adj Pwr Module

Width: 26.54 mm (1.045 in)

Height: 9.07 mm (0.357 in)

Length: 51.94 mm (2.045 in)

Industry: Industrial

Unit Weight: 6.613 g

REACH - SVHC: Details

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 14 V

Input Voltage - Min: 8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 50 A

Output Voltage-Channel 1: 800 mV to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
