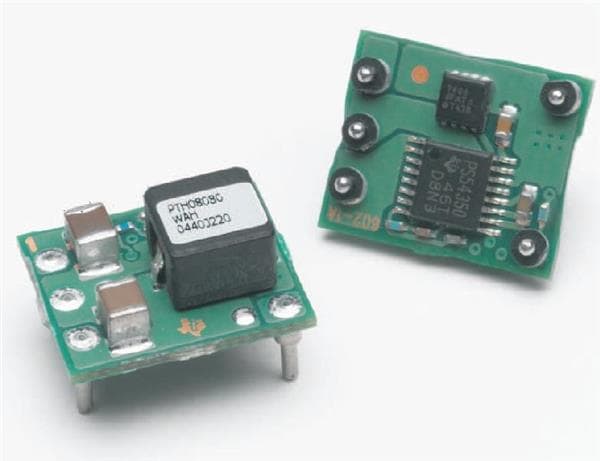

Texas Instruments PTH08080WAD Non-Isolated / PoL 2.25A Wide Input/ Ou t Adj Mini Pwr Mdl

Width: 12.7 mm (0.5 in)

Height: 8.18 mm (0.322 in)

Length: 15.24 mm (0.6 in)

Industry: Industrial

Unit Weight: 2.200 g

Output Power: 10 W

REACH - SVHC: Details

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 18 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 2.25 A

Output Voltage-Channel 1: 900 mV to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
