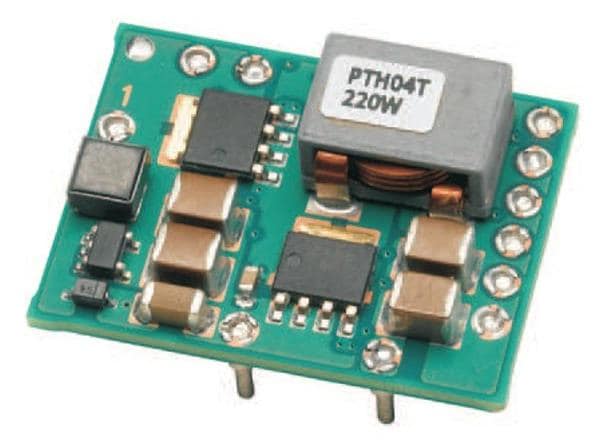

Texas Instruments PTH04T220WAD Non-Isolated / PoL 16-A 2.2-V to 5.5-V Input

Width: 18.92 mm (0.745 in)

Height: 8.5 mm (0.335 in)

Length: 25.27 mm (0.995 in)

Industry: Industrial

Unit Weight: 2.396 g

REACH - SVHC: Details

Mounting Style: Through Hole

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2.2 V

Input Voltage, Nominal: 3.3 V

Output Current-Channel 1: 16 A

Output Voltage-Channel 1: 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
