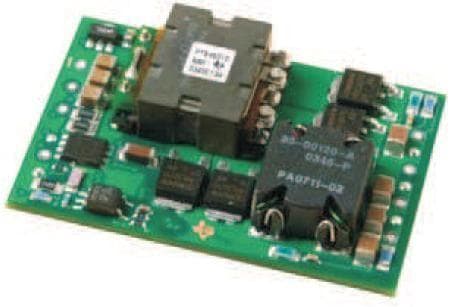

Texas Instruments PTB48510BAS Isolated 72W+/-12V Dual Comp Outp DC/DC Converter R 595-PTEA404120N2AD

Output Power: 72 W

Input Voltage: 36 V to 75 V

Mounting Style: SMD/SMT

Isolation Voltage: 1.5 kV

Number of Outputs: 2 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 3 A

Output Current-Channel 2: 3 A

Output Voltage-Channel 1: 5 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
